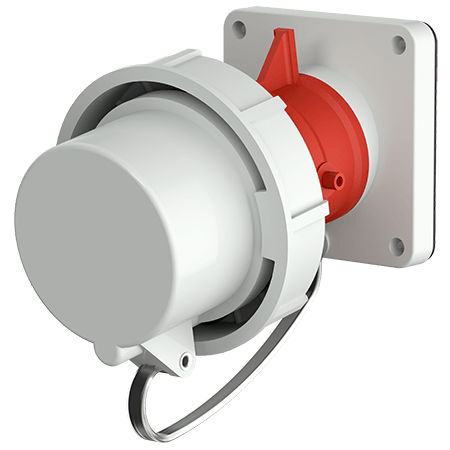

MENNEKES Panel mounted inlet 1254
MENNEKES Panel mounted inlet 1254 images3d

Panel mounted inlet 1254

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • with protective cover
  • Part no.1254
  • EAN4015394008873
  • Std. Pack. 10

Technical specifications

Panel mounted inlet 1254

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 413 g
Certifications VDE

Datasheets & Downloads

Panel mounted inlet 1254

Product infoPanel mounted inlet 1254 PDF, 173 KB
Manufacturer‘s declarationPanel mounted inlet 1254 ZIP, 227 KB
CAD data STPPanel mounted inlet 1254 ZIP, 166 KB
CAD data 3D DWGPanel mounted inlet 1254 ZIP, 887 KB
Dimensional drawing portraitPanel mounted inlet 1254 PNG, 46 KB
Dimensional drawing landscape formatPanel mounted inlet 1254 PNG, 119 KB

Directives

Panel mounted inlet 1254

REACh
RoHS

Appropriate accessories

Panel mounted inlet 1254

MENNEKES Protective cover 40786

Protective cover

Part no. 40786

for watertight plugs, wall mounted and panel mounted inlets 32 A, 5 p + 7 p
