Show all Inlets / Show all Panel mounted inlet

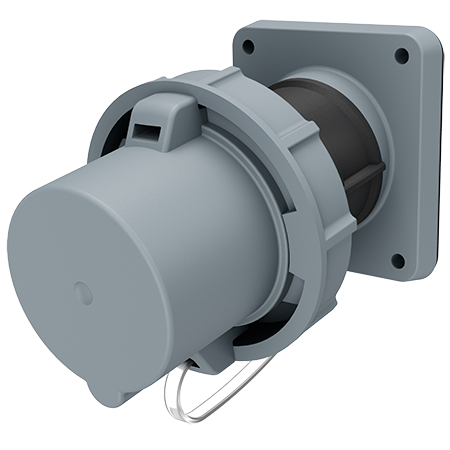

MENNEKES Panel mounted inlet 1257
MENNEKES Panel mounted inlet 1257 images3d

Panel mounted inlet 1257

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • with protective cover
  • Part no.1257
  • EAN4015394008910
  • Std. Pack. 5

Technical specifications

Panel mounted inlet 1257

Ampere 63 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 659 g
Certifications EAC

Datasheets & Downloads

Panel mounted inlet 1257

Product infoPanel mounted inlet 1257 PDF, 183 KB
Manufacturer‘s declarationPanel mounted inlet 1257 PDF, 210 KB
Dimensional drawing portraitPanel mounted inlet 1257 PNG, 46 KB
Dimensional drawing landscape formatPanel mounted inlet 1257 PNG, 119 KB

Directives

Panel mounted inlet 1257

REACh
RoHS

Appropriate accessories

Panel mounted inlet 1257

MENNEKES Protective cover 40787

Protective cover

Part no. 40787

for watertight plugs, wall mounted and panel mounted inlets 63 A, 3 p - 5 p
