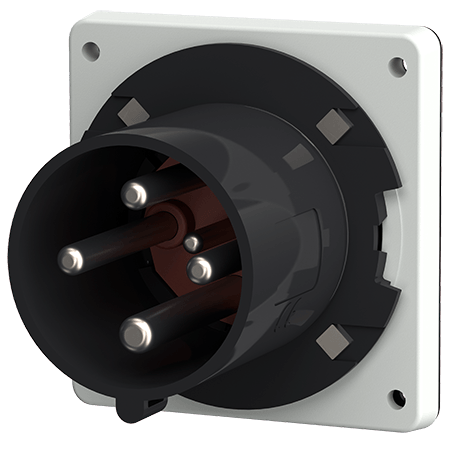

MENNEKES Panel mounted inlet 824
MENNEKES Panel mounted inlet 824 images3d

Panel mounted inlet 824

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.824
  • EAN4015394116813
  • Std. Pack. 5

Technical specifications

Panel mounted inlet 824

Ampere 63 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Weight 480 g
Certifications VDE (ÜG)
EAC

Directives

Panel mounted inlet 824

Appropriate accessories

Panel mounted inlet 824

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
