Show all Panel mounted receptacles
/
Show all Panel mounted receptacle

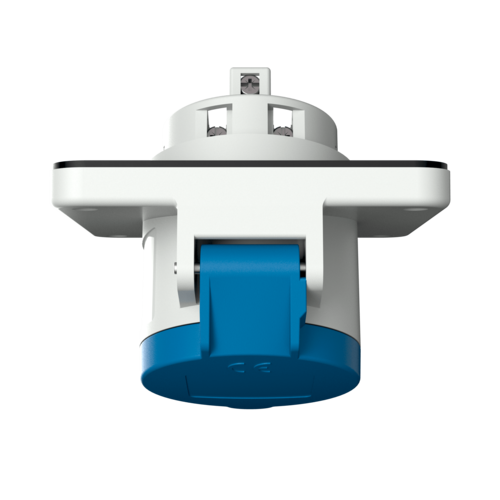

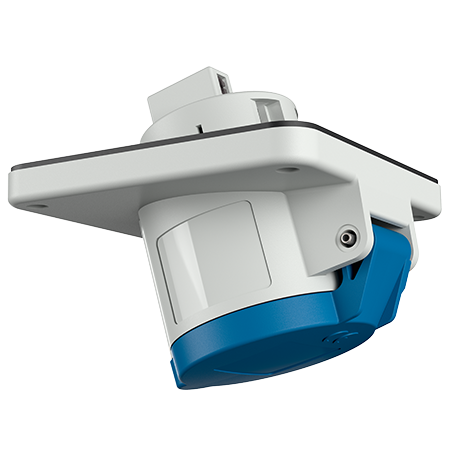

Panel mounted receptacle 1278
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
230 V
400 V
Clock position
6 h
9 h
screw terminals
for horizontal installation
15° inclination
Part no.
1278
EAN
4015394009177
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted receptacle 1278
Ampere
16 A
Poles
3 p
Voltage
230 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
85x85 mm
Fixing hole
70x70 mm
Inclination
15 °
Weight
138 g
Certifications
EAC
Datasheets & Downloads
Panel mounted receptacle 1278
Product info
Panel mounted receptacle 1278
PDF, 199 KB
CAD data STP
Panel mounted receptacle 1278
ZIP, 389 KB
CAD data 3D DWG
Panel mounted receptacle 1278
ZIP, 820 KB
Mounting instructions
Panel mounted receptacle 1278
PDF, 128 KB
Dimensional drawing portrait
Panel mounted receptacle 1278
PNG, 101 KB
Dimensional drawing landscape format
Panel mounted receptacle 1278
PNG, 101 KB
Directives
Panel mounted receptacle 1278
REACh
RoHS
