Show all Panel mounted receptacles
/
Show all Panel mounted receptacle

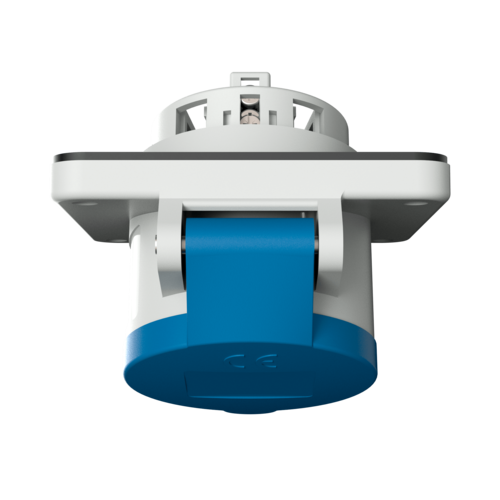

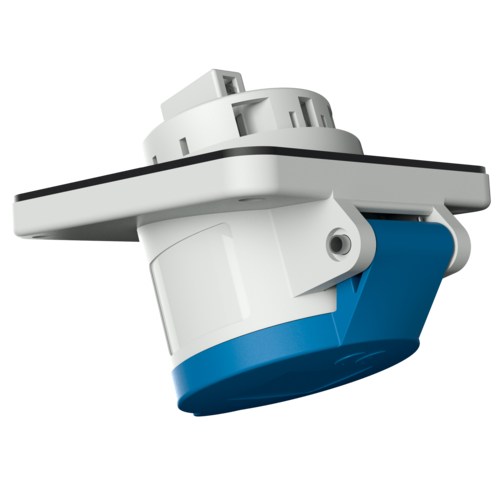

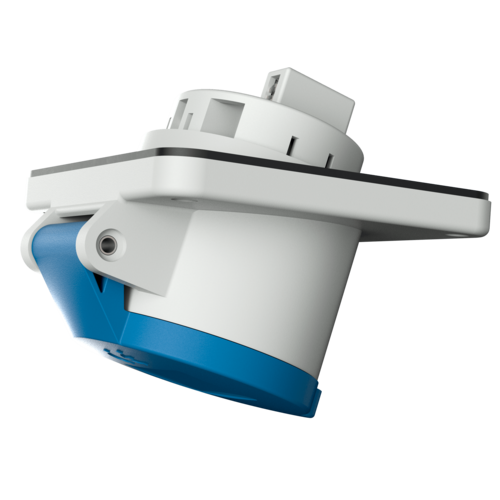

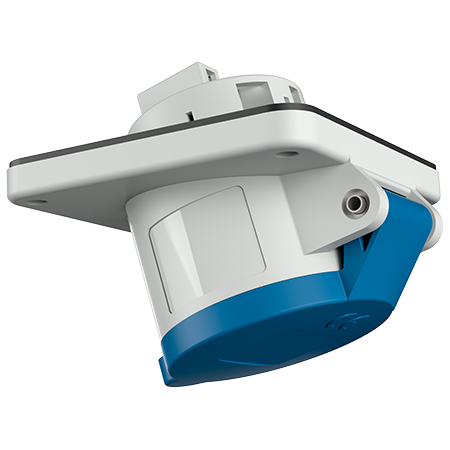

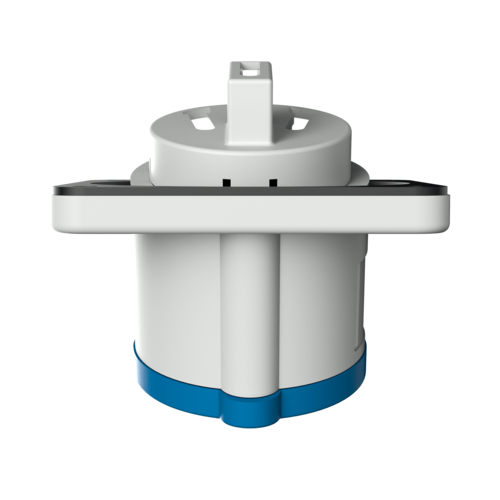

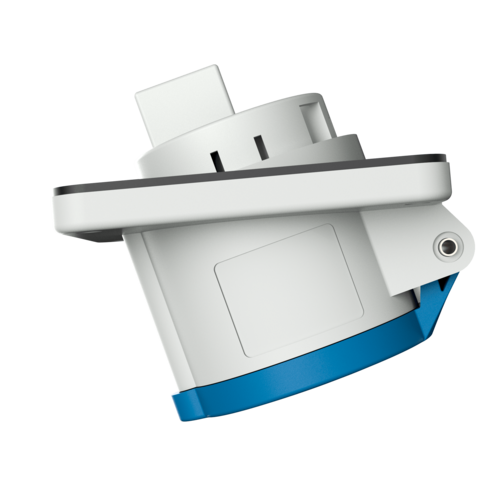

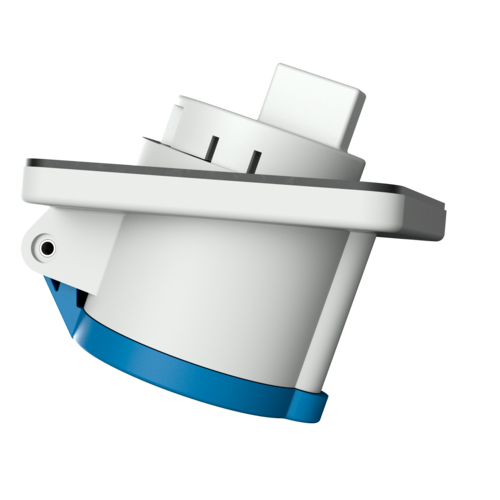

Panel mounted receptacle 1281
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
230 V
400 V
Clock position
6 h
9 h
screw terminals
for horizontal installation
15° inclination
Part no.
1281
EAN
4015394009207
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted receptacle 1281
Ampere
16 A
Poles
4 p
Voltage
230 V
Clock position
9 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
85x85 mm
Fixing hole
70x70 mm
Inclination
15 °
Weight
155 g
Certifications
EAC
Datasheets & Downloads
Panel mounted receptacle 1281
Product info
Panel mounted receptacle 1281
PDF, 196 KB
Mounting instructions
Panel mounted receptacle 1281
PDF, 128 KB
Dimensional drawing portrait
Panel mounted receptacle 1281
PNG, 101 KB
Dimensional drawing landscape format
Panel mounted receptacle 1281
PNG, 101 KB
Directives
Panel mounted receptacle 1281
REACh
RoHS
