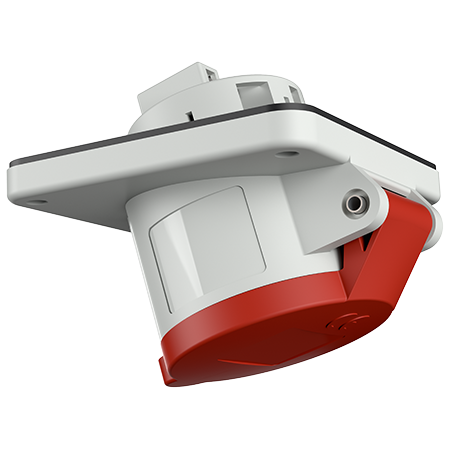

MENNEKES Panel mounted receptacle 1282
MENNEKES Panel mounted receptacle 1282 images3d

Panel mounted receptacle 1282

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • 15° inclination
  • Part no.1282
  • EAN4015394009214
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 1282

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 15 °
Weight 155 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 1282

Product infoPanel mounted receptacle 1282 PDF, 232 KB
CAD data STPPanel mounted receptacle 1282 ZIP, 139 KB
CAD data 3D DWGPanel mounted receptacle 1282 ZIP, 463 KB
Dimensional drawing portraitPanel mounted receptacle 1282 PNG, 101 KB
Dimensional drawing landscape formatPanel mounted receptacle 1282 PNG, 101 KB

Directives

Panel mounted receptacle 1282

REACh
RoHS
