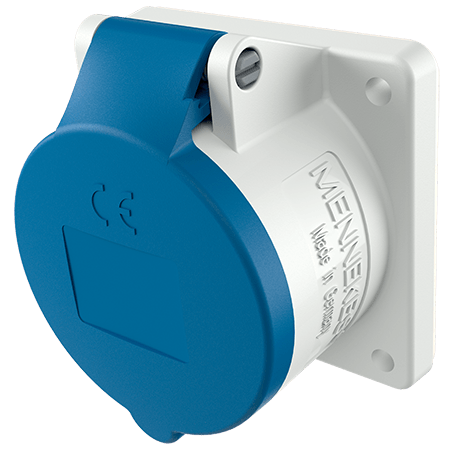

Panel mounted receptacle 1398

Name: Panel mounted receptacle
Brand: MENNEKES
SKU: 1398

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals

straight

Part no.1398
EAN4015394010333
Std. Pack. 10

Screw terminals

Standard screw terminals

Technical specifications

Panel mounted receptacle 1398

Ampere	32 A
Poles	4 p
Voltage	230 V
Clock position	9 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	212 g
Certifications	CB Zertifikat VDE EAC CQC

Datasheets & Downloads

Panel mounted receptacle 1398

Product infoPanel mounted receptacle 1398 PDF, 132 KB

Manufacturer‘s declarationPanel mounted receptacle 1398 PDF, 51 KB

Mounting instructionsPanel mounted receptacle 1398 PDF, 128 KB

Dimensional drawing portraitPanel mounted receptacle 1398 PNG, 45 KB

Dimensional drawing landscape formatPanel mounted receptacle 1398 PNG, 45 KB

Directives

Panel mounted receptacle 1398

REACh

RoHS

Appropriate accessories

Panel mounted receptacle 1398

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136
