Show all Panel mounted receptacles
/
Show all Panel mounted receptacle

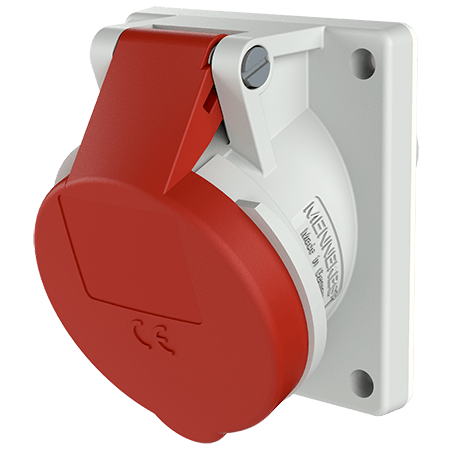

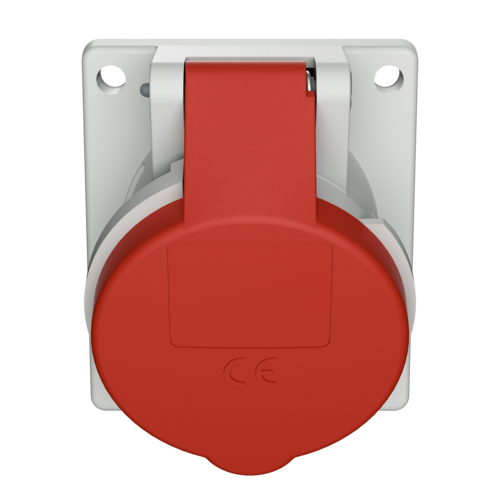

Panel mounted receptacle 1467
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
50-500 V
500 V
Clock position
2 h
4 h
6 h
7 h
9 h
10 h
screw terminals
20° inclination
Part no.
1467
EAN
4015394011231
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted receptacle 1467
Ampere
16 A
Poles
4 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
100x92 mm
Fixing hole
85x77 mm
Inclination
20 °
Weight
183 g
Certifications
VDE
Datasheets & Downloads
Panel mounted receptacle 1467
Product info
Panel mounted receptacle 1467
PDF, 126 KB
Manufacturer‘s declaration
Panel mounted receptacle 1467
PDF, 89 KB
CAD data STP
Panel mounted receptacle 1467
ZIP, 904 KB
CAD data 3D DWG
Panel mounted receptacle 1467
ZIP, 2 MB
Mounting instructions
Panel mounted receptacle 1467
PDF, 128 KB
Dimensional drawing portrait
Panel mounted receptacle 1467
PNG, 49 KB
Dimensional drawing landscape format
Panel mounted receptacle 1467
PNG, 49 KB
Directives
Panel mounted receptacle 1467
REACh
RoHS
