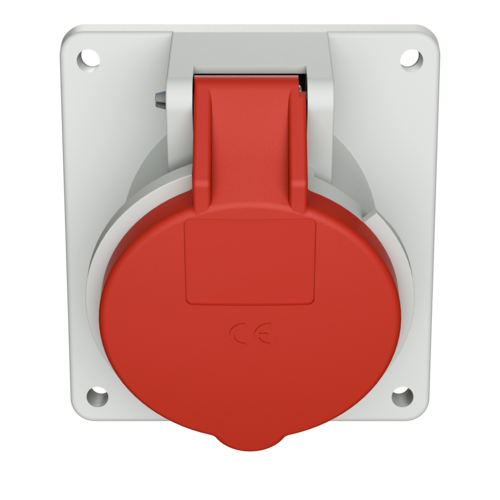

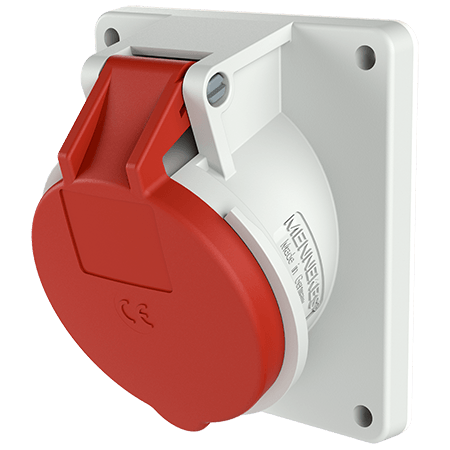

MENNEKES Panel mounted receptacle 1473
MENNEKES Panel mounted receptacle 1473 images3d

Panel mounted receptacle 1473

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.1473
  • EAN4015394011309
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 1473

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 190 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 1473

Product infoPanel mounted receptacle 1473 PDF, 123 KB
Manufacturer‘s declarationPanel mounted receptacle 1473 PDF, 37 KB
CAD data STPPanel mounted receptacle 1473 ZIP, 968 KB
CAD data 3D DWGPanel mounted receptacle 1473 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 1473 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1473 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted receptacle 1473 PNG, 49 KB

Directives

Panel mounted receptacle 1473

REACh
RoHS
