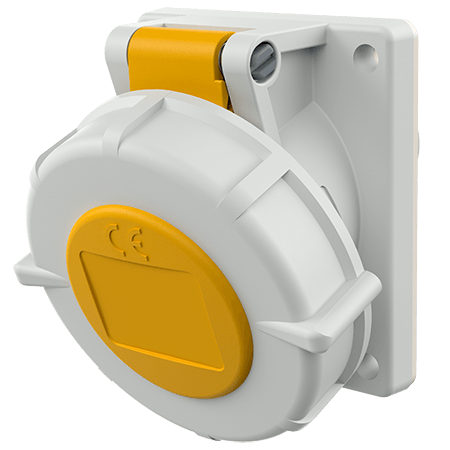

MENNEKES Panel mounted receptacle 1474

Panel mounted receptacle 1474

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.1474
  • EAN4015394011323
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 1474

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 73.5x64 mm
Fixing hole 60x52 mm
Inclination 20 °
Weight 151 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 1474

Product infoPanel mounted receptacle 1474 PDF, 154 KB
Manufacturer‘s declarationPanel mounted receptacle 1474 PDF, 37 KB
Mounting instructionsPanel mounted receptacle 1474 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1474 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted receptacle 1474 PNG, 100 KB

Directives

Panel mounted receptacle 1474

REACh
RoHS
