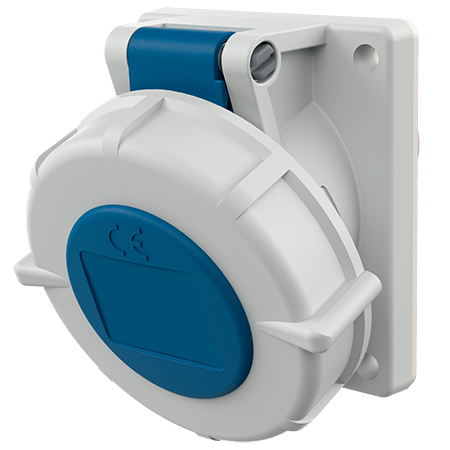

MENNEKES Panel mounted receptacle 1475
MENNEKES Panel mounted receptacle 1475 images3d

Panel mounted receptacle 1475

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • Part no.1475
  • EAN4015394011330
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 1475

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 73.5x64 mm
Fixing hole 60x52 mm
Inclination 20 °
Weight 151 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 1475

Product infoPanel mounted receptacle 1475 PDF, 160 KB
Manufacturer‘s declarationPanel mounted receptacle 1475 PDF, 54 KB
CAD data STPPanel mounted receptacle 1475 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 1475 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 1475 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1475 PNG, 99 KB
Dimensional drawing landscape formatPanel mounted receptacle 1475 PNG, 100 KB

Directives

Panel mounted receptacle 1475

REACh
RoHS
