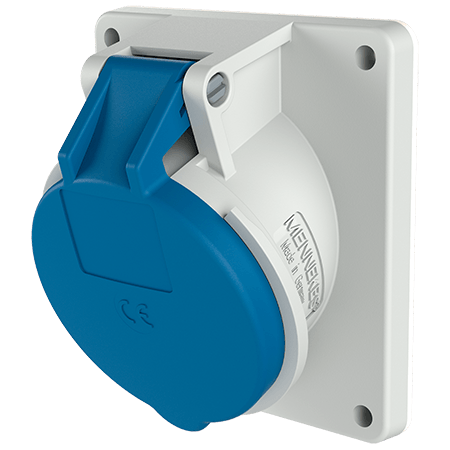

MENNEKES Panel mounted receptacle 1492

Panel mounted receptacle 1492

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.1492
  • EAN4015394011545
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 1492

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 236 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 1492

Product infoPanel mounted receptacle 1492 PDF, 128 KB
Manufacturer‘s declarationPanel mounted receptacle 1492 PDF, 37 KB
CAD data STPPanel mounted receptacle 1492 ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 1492 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 1492 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1492 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted receptacle 1492 PNG, 49 KB

Directives

Panel mounted receptacle 1492

REACh
RoHS
