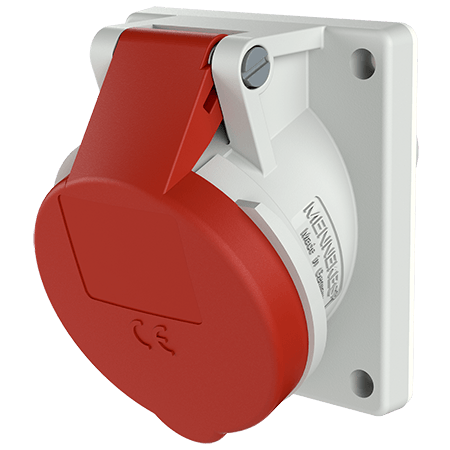

MENNEKES Panel mounted receptacle 1496

Panel mounted receptacle 1496

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.1496
  • EAN4015394011583
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 1496

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 250 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 1496

Product infoPanel mounted receptacle 1496 PDF, 126 KB
CAD data STPPanel mounted receptacle 1496 ZIP, 1,018 KB
CAD data 3D DWGPanel mounted receptacle 1496 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 1496 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1496 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted receptacle 1496 PNG, 49 KB

Directives

Panel mounted receptacle 1496

REACh
RoHS
