Show all Panel mounted receptacles
/
Show all Panel mounted receptacle

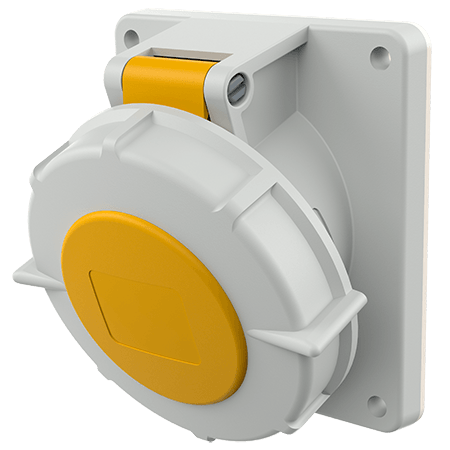

Panel mounted receptacle 1504
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
9 h
screw terminals
20° inclination
receptacles optional fitted with auxiliary contact
Part no.
1504
EAN
4015394011705
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted receptacle 1504
Ampere
32 A
Poles
4 p
Voltage
110 V
Clock position
4 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP67
Flange
100x92 mm
Fixing hole
85x77 mm
Inclination
20 °
Weight
291 g
Datasheets & Downloads
Panel mounted receptacle 1504
Product info
Panel mounted receptacle 1504
PDF, 181 KB
Dimensional drawing portrait
Panel mounted receptacle 1504
PNG, 99 KB
Dimensional drawing landscape format
Panel mounted receptacle 1504
PNG, 100 KB
Directives
Panel mounted receptacle 1504
REACh
RoHS
