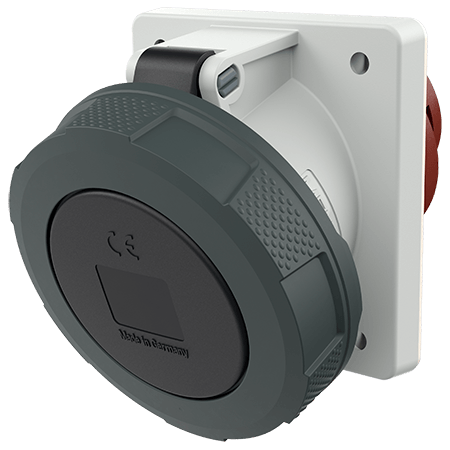

MENNEKES Panel mounted receptacle 213A
MENNEKES Panel mounted receptacle 213A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted receptacle 213A

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • 15° inclination
  • receptacles with pilot contact: part no. + index P
  • Part no.213A
  • EAN4015394000983
  • Std. Pack. 5

Technical specifications

Panel mounted receptacle 213A

Ampere 125 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 114x110 mm
Fixing hole 90x90 mm
Inclination 15 °
Weight 940 g
Certifications VDE
EAC
CQC

Datasheets & Downloads

Panel mounted receptacle 213A

Product infoPanel mounted receptacle 213A PDF, 189 KB
Manufacturer‘s declarationPanel mounted receptacle 213A PDF, 28 KB
Dimensional drawing portraitPanel mounted receptacle 213A PNG, 108 KB
Dimensional drawing landscape formatPanel mounted receptacle 213A PNG, 109 KB

Videos

Panel mounted receptacle 213A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted receptacle 213A

REACh
RoHS
