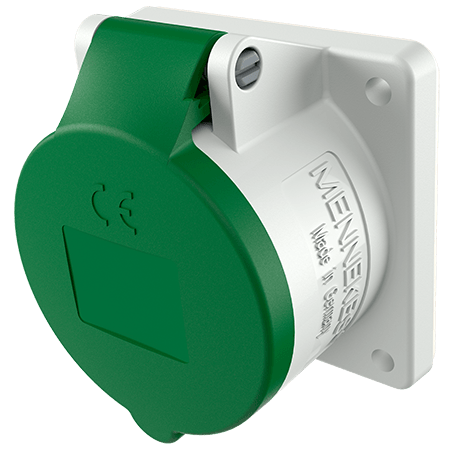

Panel mounted receptacle 3055

Name: Panel mounted receptacle
Brand: MENNEKES
SKU: 3055

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals

straight

Part no.3055
EAN4015394017622
Std. Pack. 10

Screw terminals

Standard screw terminals

Technical specifications

Panel mounted receptacle 3055

Ampere	16 A
Poles	3 p
Voltage	50-500 V
Clock position	2 h
Hertz	300-500 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	137 g
Certifications	EAC CQC

Datasheets & Downloads

Panel mounted receptacle 3055

Product infoPanel mounted receptacle 3055 PDF, 134 KB

Mounting instructionsPanel mounted receptacle 3055 PDF, 128 KB

Dimensional drawing portraitPanel mounted receptacle 3055 PNG, 45 KB

Dimensional drawing landscape formatPanel mounted receptacle 3055 PNG, 45 KB

Directives

Panel mounted receptacle 3055

REACh

RoHS

Appropriate accessories

Panel mounted receptacle 3055

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted receptacle of product groups 1046, 1056, 1134 and 1136
