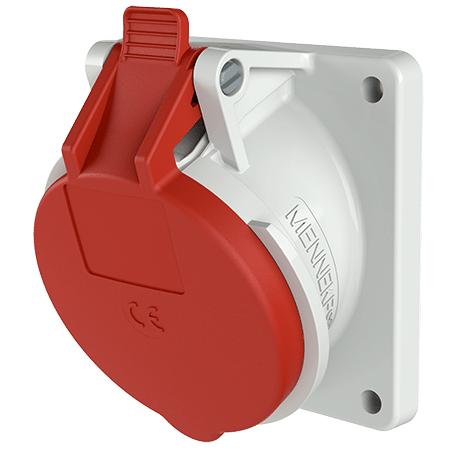

MENNEKES Panel mounted receptacle 3120
MENNEKES Panel mounted receptacle 3120 images3d

Panel mounted receptacle 3120

Ampere 16 A 32 A
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • uniform fixing hole spacing
  • suitable for through wiring
  • 20° inclination
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.3120
  • EAN4015394220619
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 3120

Ampere 32 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 32 g
Certifications EAC

Datasheets & Downloads

Panel mounted receptacle 3120

Product infoPanel mounted receptacle 3120 PDF, 127 KB
CAD data STPPanel mounted receptacle 3120 ZIP, 980 KB
CAD data 3D DWGPanel mounted receptacle 3120 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 3120 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 3120 PNG, 53 KB
Dimensional drawing landscape formatPanel mounted receptacle 3120 PNG, 52 KB
