Show all Panel mounted receptacles
/
Show all Panel mounted receptacle

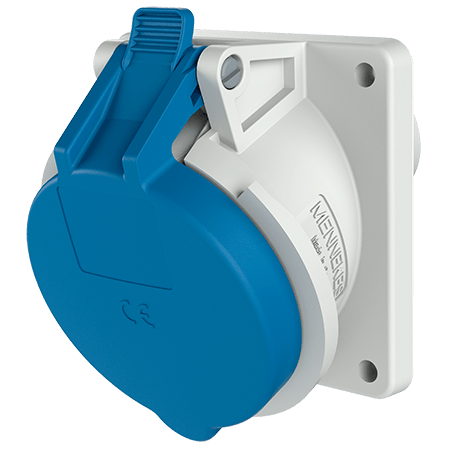

Panel mounted receptacle 3140
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
9 h
standard flange
dimensions 85 x 85 mm
20° inclination
receptacles are designed for adding an auxiliary contact switch
Part no.
3140
EAN
4015394216018
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted receptacle 3140
Ampere
32 A
Poles
4 p
Voltage
230 V
Clock position
9 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Flange
85x85 mm
Fixing hole
70x70 mm
Inclination
20 °
Weight
120 g
Datasheets & Downloads
Panel mounted receptacle 3140
Product info
Panel mounted receptacle 3140
PDF, 151 KB
Dimensional drawing portrait
Panel mounted receptacle 3140
PNG, 53 KB
Dimensional drawing landscape format
Panel mounted receptacle 3140
PNG, 52 KB
Directives
Panel mounted receptacle 3140
REACh
RoHS
