Show all SCHUKO® / Show all Panel mounted receptacle SCHUKO®

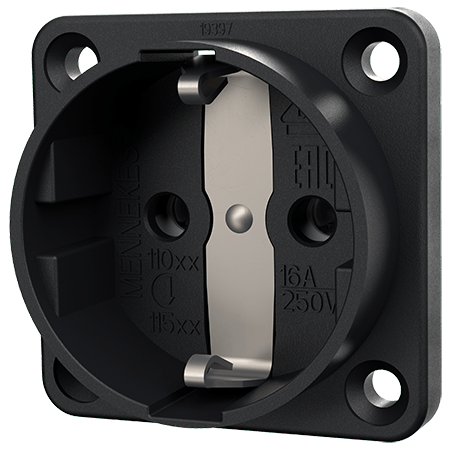

MENNEKES Panel mounted receptacle SCHUKO® 11512
MENNEKES Panel mounted receptacle SCHUKO® 11512 images3d

Panel mounted receptacle SCHUKO® 11512

Ampere 16 A
Poles
Voltage
  • without hinged lid
  • 3 plug-in terminals as connecting terminals for 1.5 – 2.5 mm²
  • other colours on request
  • Part no.11512
  • EAN4015394192459
  • Std. Pack. 100

Technical specifications

Panel mounted receptacle SCHUKO® 11512

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP20
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 31 g
Certifications VDE
EAC
Kema

Datasheets & Downloads

Panel mounted receptacle SCHUKO® 11512

Product infoPanel mounted receptacle SCHUKO® 11512 PDF, 212 KB
Dimensional drawing portraitPanel mounted receptacle SCHUKO® 11512 PNG, 34 KB
Dimensional drawing landscape formatPanel mounted receptacle SCHUKO® 11512 PNG, 80 KB

Directives

Panel mounted receptacle SCHUKO® 11512

REACh
RoHS

Appropriate accessories

Panel mounted receptacle SCHUKO® 11512

MENNEKES Base for wall mounted receptacle 10716

Base for wall mounted receptacle

Part no. 10716

with cable entry and screws, suitable for all panel mounted receptacles SCHUKO®/ grounding type receptacles, flange: 50 x 50 mm

more
