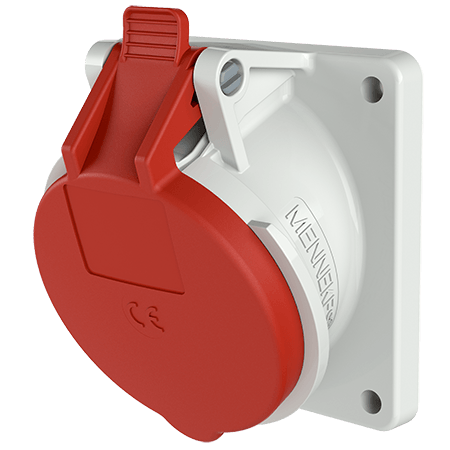

Panel mounted receptacles with TwinCONTACT 3070

Name: Panel mounted receptacles with TwinCONTACT
Brand: MENNEKES
SKU: 3070

Ampere 16 A 32 A

Poles

Voltage

Clock position

screwless spring terminals
standard flange dimensions

20° inclination
receptacles are designed for adding an auxiliary contact switch

Part no.3070
EAN4015394221661
Std. Pack. 10

Technical specifications

Panel mounted receptacles with TwinCONTACT 3070

Ampere	16 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screwless - TwinCONTACT
Contact	standard
Protection type	IP44
Flange	85x85 mm
Fixing hole	70x70 mm
Inclination	20 °
Weight	140 g
Certifications	VDE EAC

Datasheets & Downloads

Panel mounted receptacles with TwinCONTACT 3070

Product infoPanel mounted receptacles with TwinCONTACT 3070 PDF, 182 KB

CAD data STPPanel mounted receptacles with TwinCONTACT 3070 ZIP, 2 MB

CAD data 3D DWGPanel mounted receptacles with TwinCONTACT 3070 ZIP, 4 MB

Dimensional drawing portraitPanel mounted receptacles with TwinCONTACT 3070 PNG, 100 KB

Dimensional drawing landscape formatPanel mounted receptacles with TwinCONTACT 3070 PNG, 101 KB

Directives

Panel mounted receptacles with TwinCONTACT 3070

REACh

RoHS

Appropriate accessories

Panel mounted receptacles with TwinCONTACT 3070

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
