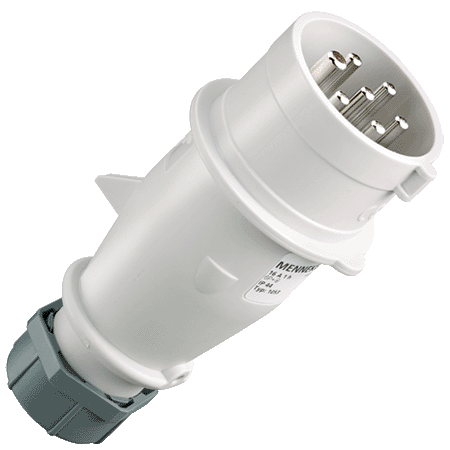

MENNEKES Plug AM-TOP® 1053

Plug AM-TOP® 1053

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.1053
  • EAN4015394007036
  • Std. Pack. 10

Technical specifications

Plug AM-TOP® 1053

Ampere 16 A
Poles 7 p
Voltage 50-500 V
Clock position 1 h
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Weight 200 g

Datasheets & Downloads

Plug AM-TOP® 1053

Product infoPlug AM-TOP® 1053 PDF, 125 KB
Mounting instructionsPlug AM-TOP® 1053 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP® 1053 PNG, 75 KB
Dimensional drawing landscape formatPlug AM-TOP® 1053 PNG, 75 KB

Directives

Plug AM-TOP® 1053

REACh
RoHS

Appropriate accessories

Plug AM-TOP® 1053

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage

more
