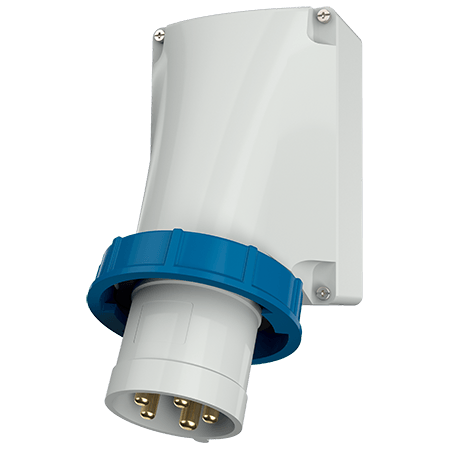

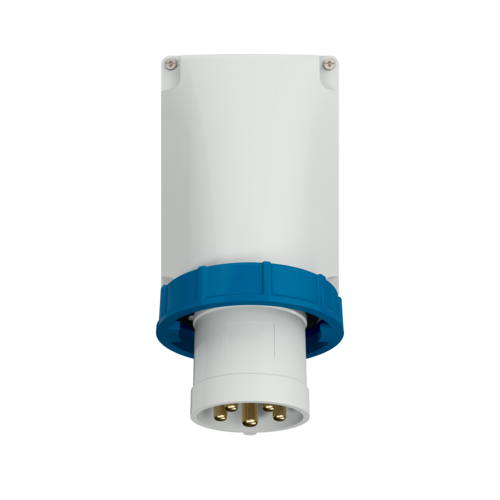

MENNEKES Wall mounted inlet 360
MENNEKES Wall mounted inlet 360 images3d

Wall mounted inlet 360

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • screw terminals
  • for a suitable watertight protective cover see part no. 40434
  • Part no.360
  • EAN4015394002628
  • Std. Pack. 5

Technical specifications

Wall mounted inlet 360

Ampere 63 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 931 g
Certifications EAC
CQC

Datasheets & Downloads

Wall mounted inlet 360

Product infoWall mounted inlet 360 PDF, 129 KB
Dimensional drawing portraitWall mounted inlet 360 PNG, 60 KB
Dimensional drawing landscape formatWall mounted inlet 360 PNG, 60 KB

Directives

Wall mounted inlet 360

REACh
RoHS

Appropriate accessories

Wall mounted inlet 360

MENNEKES Protective cover 40787

Protective cover

Part no. 40787

for watertight plugs, wall mounted and panel mounted inlets 63 A, 3 p - 5 p

more
MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage

more
