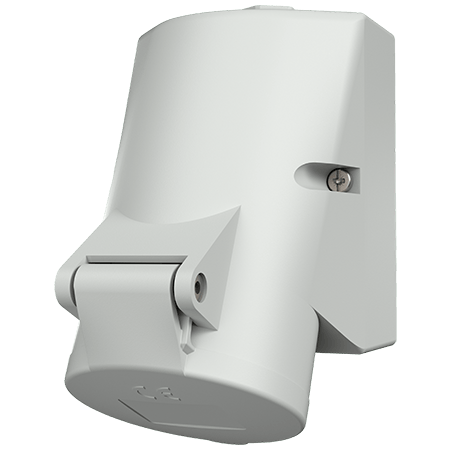

MENNEKES Wall mounted receptacle 2675
MENNEKES Wall mounted receptacle 2675 images3d

Wall mounted receptacle 2675

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and one blind entry (can be cut out) at the bottom
  • enclosure base can be turned 180° (for 5-pole design)
  • Part no.2675
  • EAN4015394015963
  • Std. Pack. 10

Technical specifications

Wall mounted receptacle 2675

Ampere 16 A
Poles 5 p
Voltage 50-500 V
Clock position 1 h
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 250 g
Certifications VDE

Datasheets & Downloads

Wall mounted receptacle 2675

Product infoWall mounted receptacle 2675 PDF, 152 KB
Mounting instructionsWall mounted receptacle 2675 PDF, 128 KB
Dimensional drawing portraitWall mounted receptacle 2675 PNG, 96 KB
Dimensional drawing landscape formatWall mounted receptacle 2675 PNG, 97 KB

Directives

Wall mounted receptacle 2675

REACh
RoHS
