Show all Wall mounted receptacles
/
Show all Wall mounted receptacle

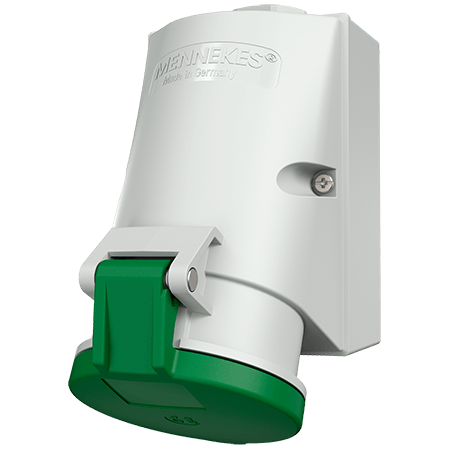

Wall mounted receptacle 3149
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
50-500 V
500 V
Clock position
2 h
4 h
6 h
7 h
9 h
10 h
screw terminals
internal fixing
one cable entry at top, two blind cable entries (can be cut out) at bottom
enclosure base can be turned 180°
receptacles are designed for adding an auxiliary contact switch
Part no.
3149
EAN
4015394017899
Std. Pack.
10
Add to shopping basket
Technical specifications
Wall mounted receptacle 3149
Ampere
32 A
Poles
5 p
Voltage
50-500 V
Clock position
2 h
Hertz
300-500 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Weight
400 g
Certifications
EAC
CQC
Datasheets & Downloads
Wall mounted receptacle 3149
Product info
Wall mounted receptacle 3149
PDF, 137 KB
Manufacturer‘s declaration
Wall mounted receptacle 3149
PDF, 38 KB
Mounting instructions
Wall mounted receptacle 3149
PDF, 128 KB
Dimensional drawing portrait
Wall mounted receptacle 3149
PNG, 97 KB
Dimensional drawing landscape format
Wall mounted receptacle 3149
PNG, 98 KB
Directives
Wall mounted receptacle 3149
REACh
RoHS
