Show all Wall mounted receptacles / Show all Wall mounted receptacle

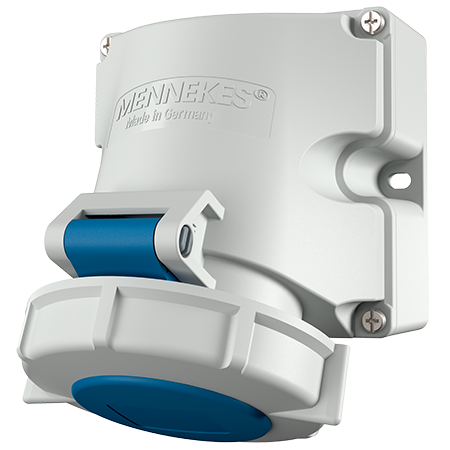

MENNEKES Wall mounted receptacle 9341
MENNEKES Wall mounted receptacle 9341 images3d

Wall mounted receptacle 9341

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9341
  • EAN4015394280422
  • Std. Pack. 5
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

Resistant to chemicals

Resistant to chemicals

Increased chemical resistance

Read more

Technical specifications

Wall mounted receptacle 9341

Ampere 16 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 406 g
Certifications EAC

Datasheets & Downloads

Wall mounted receptacle 9341

Product infoWall mounted receptacle 9341 PDF, 306 KB
Mounting instructionsWall mounted receptacle 9341 PDF, 128 KB
Dimensional drawing portraitWall mounted receptacle 9341 PNG, 133 KB
Dimensional drawing landscape formatWall mounted receptacle 9341 PNG, 135 KB

Directives

Wall mounted receptacle 9341

REACh
RoHS

Appropriate accessories

Wall mounted receptacle 9341

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

more
