Show all Inlets / Show all Panel mounted inlet

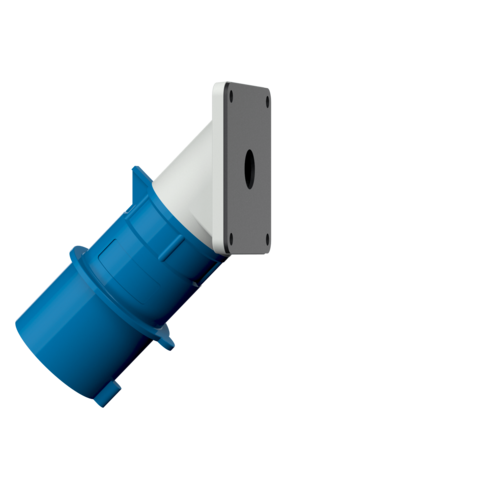

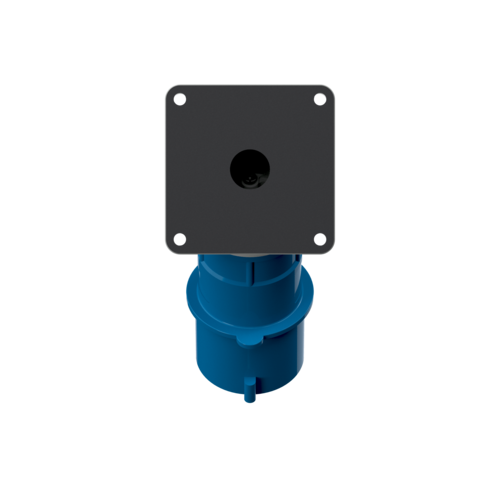

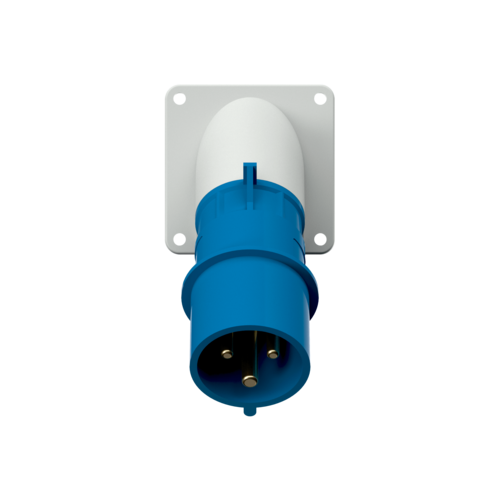

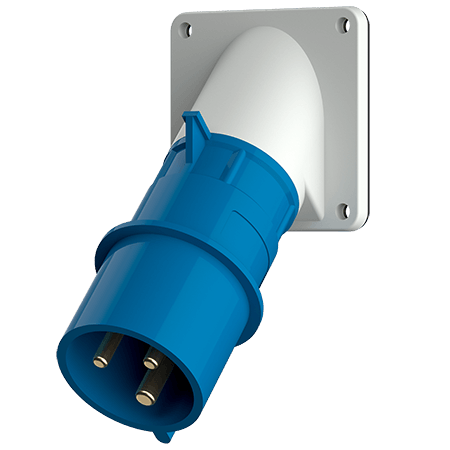

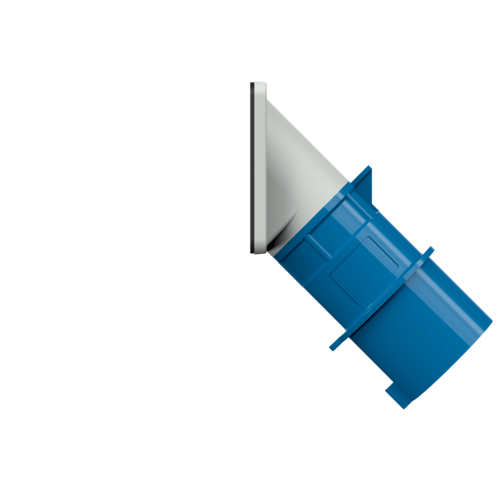

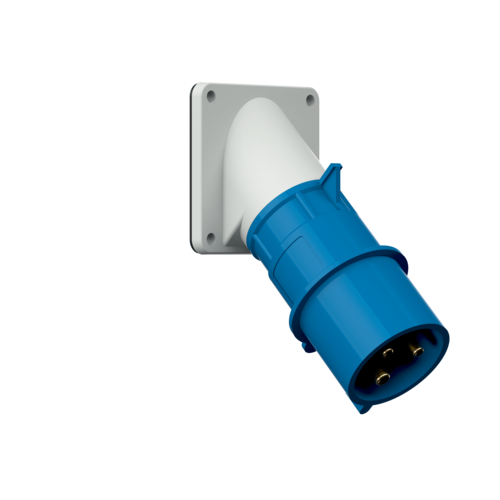

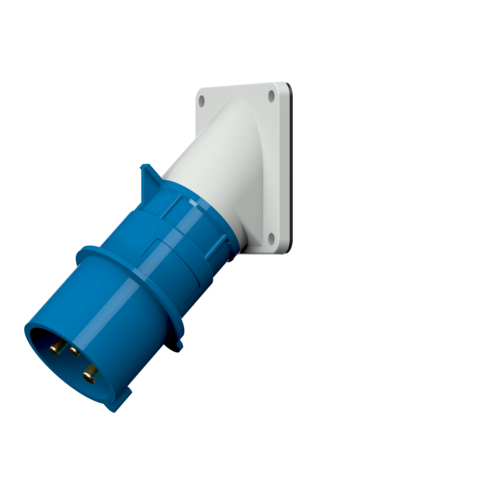

MENNEKES Panel mounted inlet 434
MENNEKES Panel mounted inlet 434 images3d

Panel mounted inlet 434

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • Part no.434
  • EAN4015394003076
  • Std. Pack. 10

Technical specifications

Panel mounted inlet 434

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 228 g
Certifications EAC

Datasheets & Downloads

Panel mounted inlet 434

Product infoPanel mounted inlet 434 PDF, 132 KB
CAD data STPPanel mounted inlet 434 ZIP, 102 KB
CAD data 3D DWGPanel mounted inlet 434 ZIP, 708 KB
Dimensional drawing portraitPanel mounted inlet 434 PNG, 89 KB
Dimensional drawing landscape formatPanel mounted inlet 434 PNG, 88 KB

Directives

Panel mounted inlet 434

REACh
RoHS

Appropriate accessories

Panel mounted inlet 434

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
