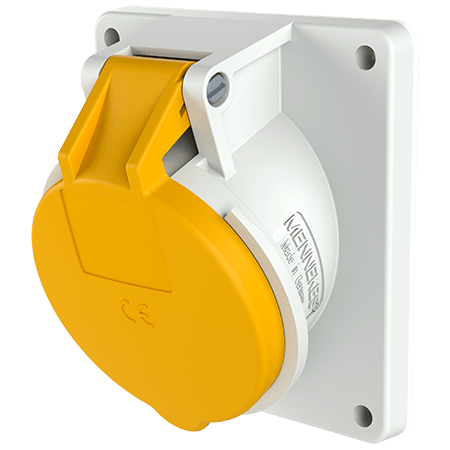

MENNEKES Panel mounted receptacle 1491

Panel mounted receptacle 1491

Ampere 16 A 32 A
  • screw terminals
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.1491
  • EAN4015394011538
  • Std. Pack. 10
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

Technical specifications

Panel mounted receptacle 1491

Ampere 32 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 236 g
Certifications EAC
CQC

Datasheets & Downloads

Panel mounted receptacle 1491

Product infoPanel mounted receptacle 1491 PDF, 122 KB
Mounting instructionsPanel mounted receptacle 1491 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1491 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted receptacle 1491 PNG, 49 KB

Directives

Panel mounted receptacle 1491

REACh
RoHS
