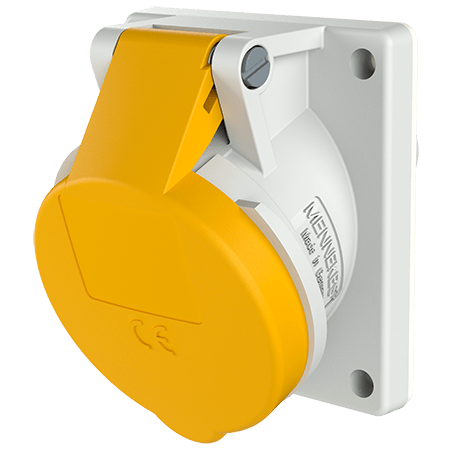

Panel mounted receptacle 1462

Poles
Voltage
Clock position
  • screw terminals
  • suitable for through wiring
  • 20° inclination
  • Part no.1462
  • EAN4015394011163
  • Std. Pack. 10 Qty.

Technical specifications

Panel mounted receptacle 1462

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Flange 73.5x64 mm
Fixing hole 60x52 mm
Inclination 20 °
Weight 132 g
Declaration of Conformity CN,CQC

Appropriate products

Panel mounted receptacle 1462 with IP 44

Connector AM-TOP®

Part no. 509

  • Protection type: IP 44
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more

Plug AM-TOP®

Part no. 247

  • Protection type: IP 44
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more

Wall mounted receptacle

Part no. 7010A

  • Protection type: IP 44
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more
