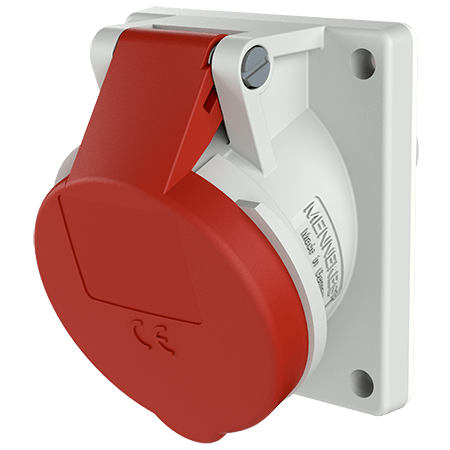

MENNEKES Panel mounted receptacle 1500

Panel mounted receptacle 1500

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • 20° inclination
  • receptacles optional fitted with auxiliary contact
  • Part no.1500
  • EAN4015394011620
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 1500

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 288 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 1500

Product infoPanel mounted receptacle 1500 PDF, 126 KB
Manufacturer‘s declarationPanel mounted receptacle 1500 PDF, 37 KB
CAD data STPPanel mounted receptacle 1500 ZIP, 879 KB
CAD data 3D DWGPanel mounted receptacle 1500 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 1500 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 1500 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted receptacle 1500 PNG, 49 KB

Directives

Panel mounted receptacle 1500

REACh
RoHS
