MENNEKES Wall mounted receptacle DUOi 5613506G
MENNEKES Wall mounted receptacle DUOi 5613506G images3d

Please accept marketing-cookies to watch this video.

Video varieties

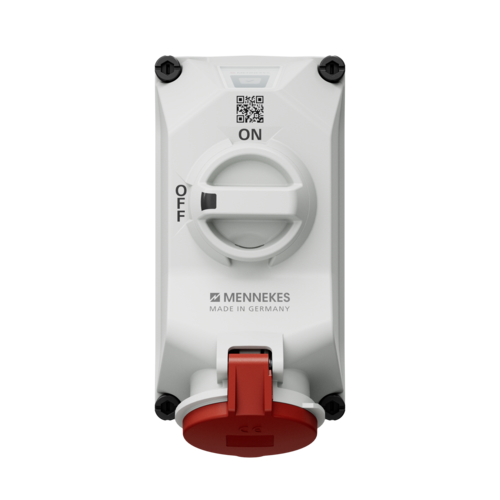

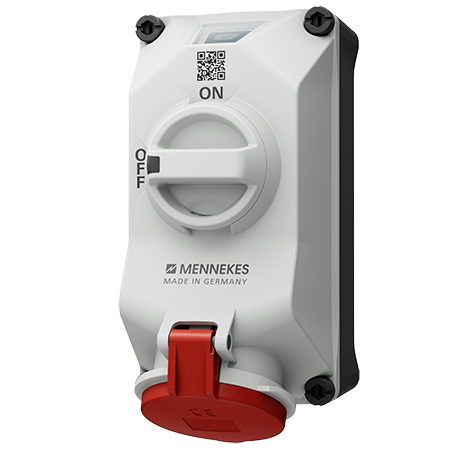

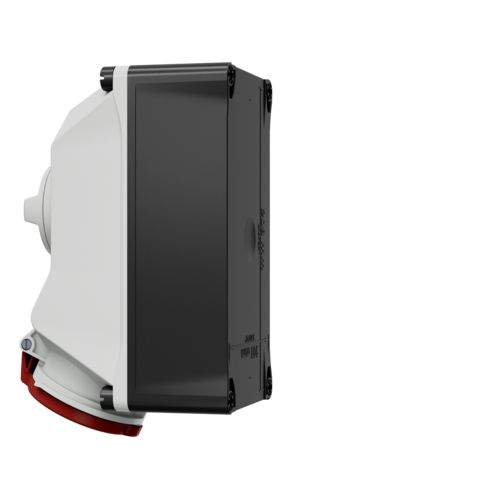

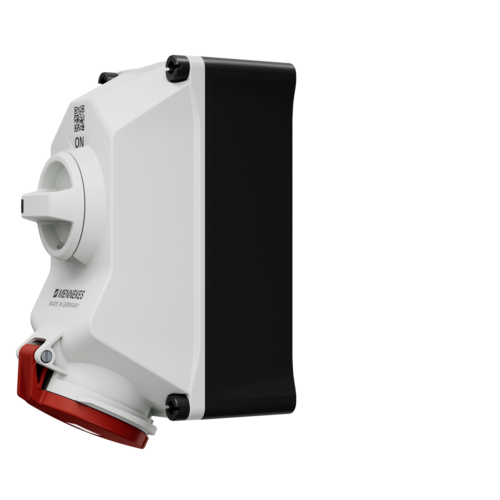

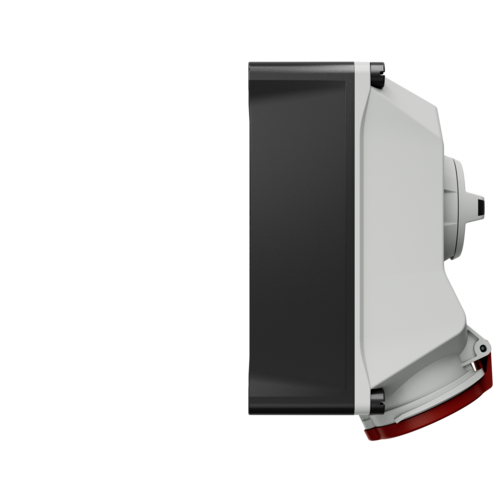

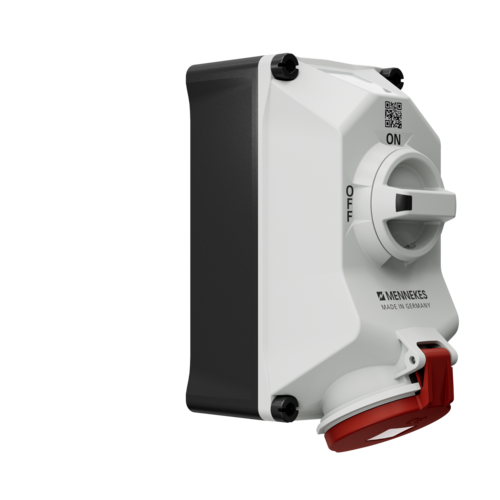

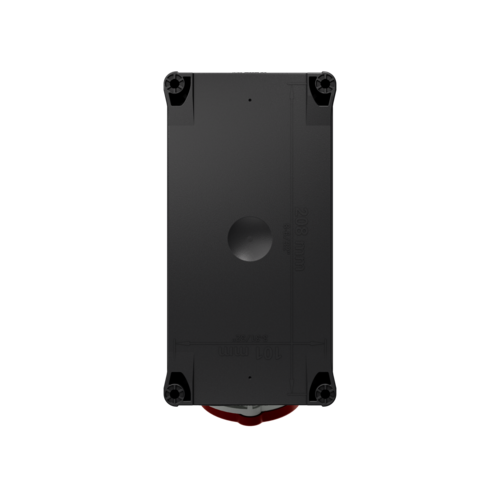

Wall mounted receptacle DUOi 5613506G

Twice the protection - our DUOi wall mounted receptacle impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under current load, and when switched off, the DUOi can be additionally secured with a Lockout-Tagout padlock. The DUOi wall mounted receptacle with IP44 protection is protected against the ingress of foreign bodies and splash water. The convenient LED lights up green when switched on and goes out in the event of a power flow fault.
Poles
Voltage
Clock position
  • screw terminals
  • LED voltage indicator
  • pre-wired for installation
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • 3 pole switch
  • receptacles can be padlocked
  • Part no.5613506G
  • EAN4015394303121
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted receptacle DUOi 5613506G

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP44
Enclosure material Plastic
Weight 1348 g
Certifications VDE
