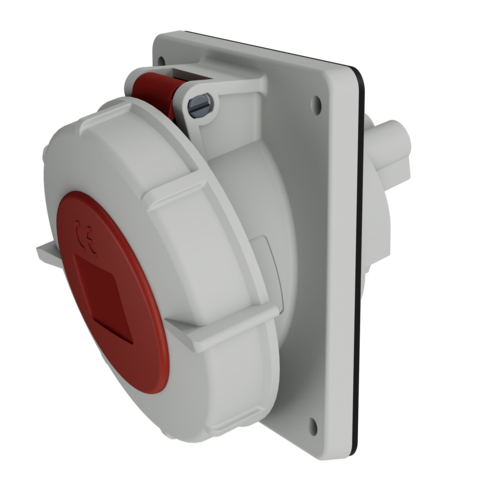

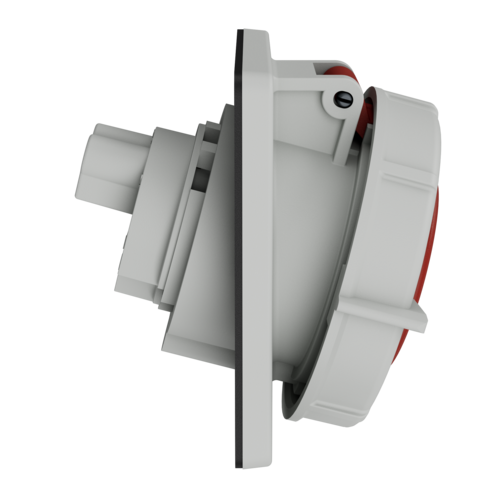

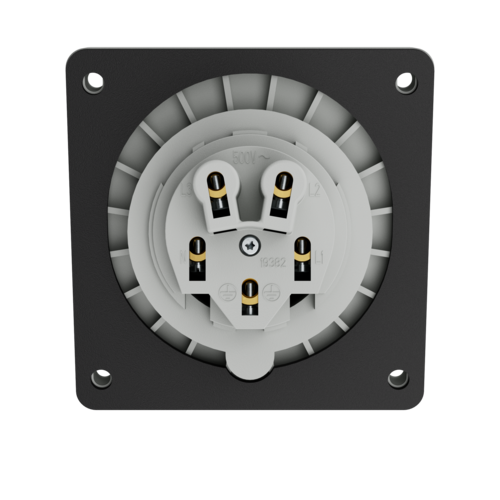

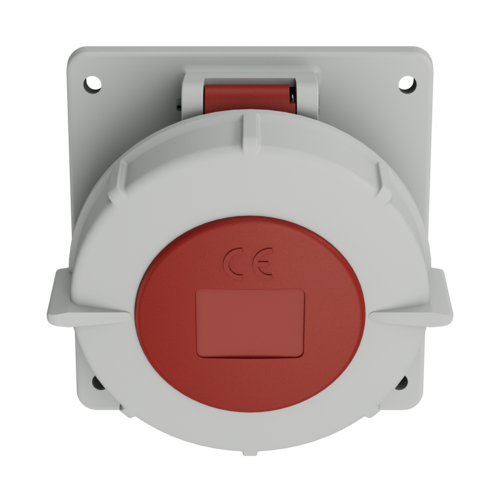

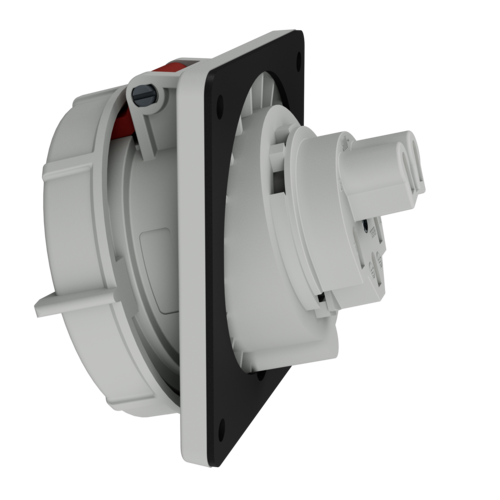

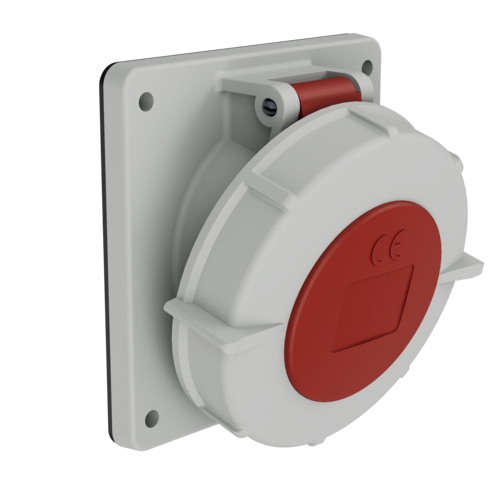

MENNEKES Panel mounted receptacle 3334

Panel mounted receptacle 3334

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • uniform fixing hole spacing
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.3334
  • EAN4015394188070
  • Std. Pack. 10

Technical specifications

Panel mounted receptacle 3334

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 110x106 mm
Fixing hole 90x90 mm
Inclination 15 °
Weight 320 g
Certifications VDE
CB Zertifikat

Datasheets & Downloads

Panel mounted receptacle 3334

Product infoPanel mounted receptacle 3334 PDF, 283 KB
CAD data STPPanel mounted receptacle 3334 ZIP, 978 KB
CAD data 3D DWGPanel mounted receptacle 3334 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 3334 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 3334 PNG, 104 KB
Dimensional drawing landscape formatPanel mounted receptacle 3334 PNG, 105 KB

Directives

Panel mounted receptacle 3334

REACh
RoHS

Appropriate accessories

Panel mounted receptacle 3334

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for various wall mounted und panel mounted receptacles 16A and 32A
