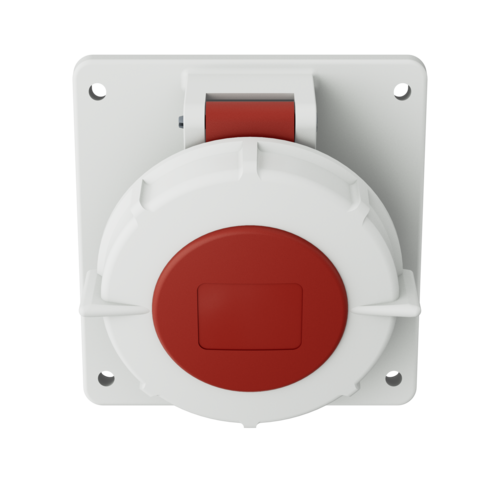

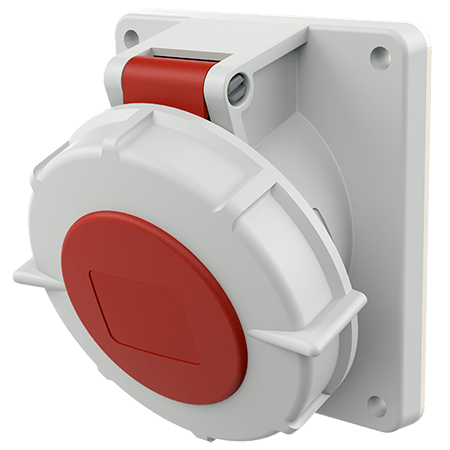

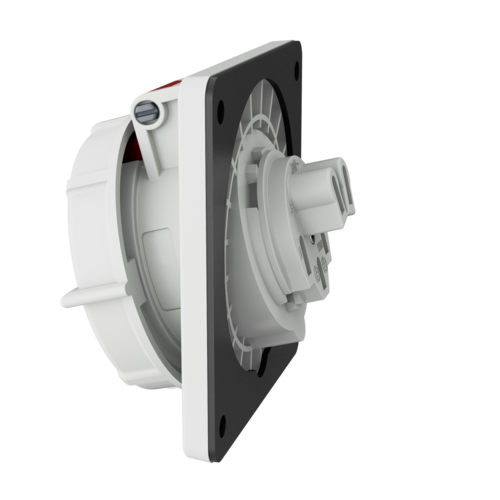

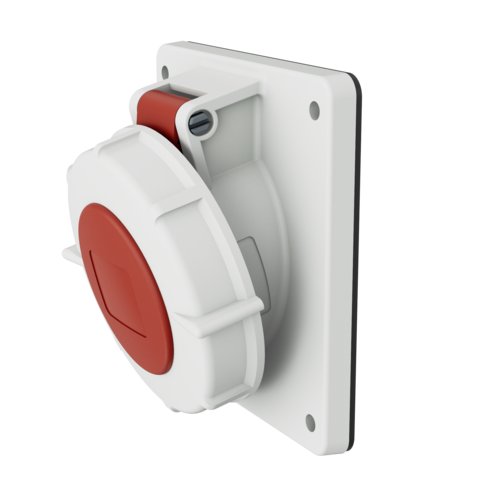

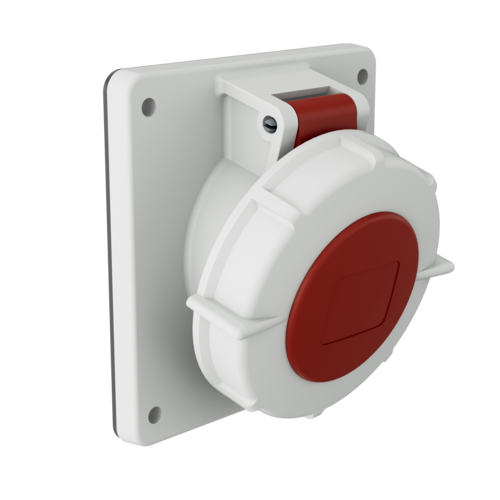

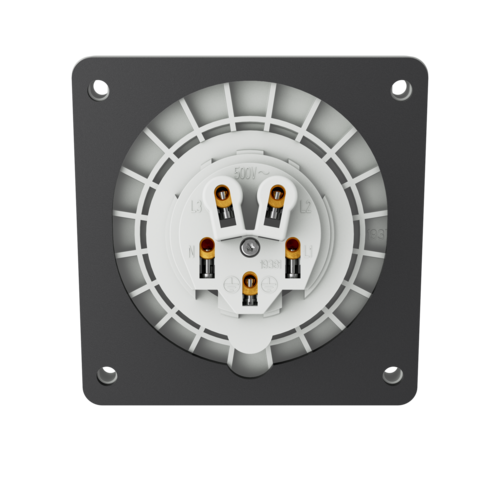

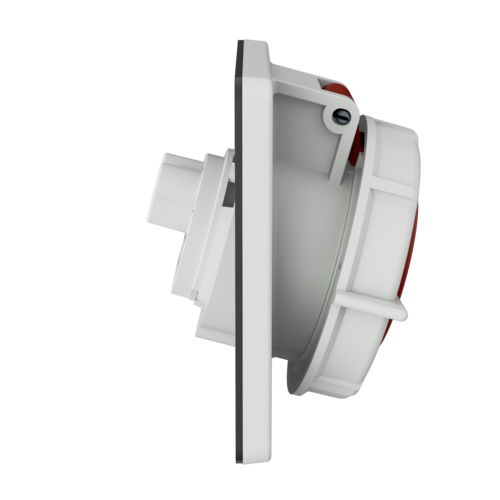

MENNEKES Panel mounted receptacle 3333
MENNEKES Panel mounted receptacle 3333 images3d

Panel mounted receptacle 3333

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • uniform fixing hole spacing
  • Part no.3333
  • EAN4015394188063
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 3333

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 110x106 mm
Fixing hole 90x90 mm
Inclination 15 °
Weight 420 g
Certifications VDE

Datasheets & Downloads

Panel mounted receptacle 3333

Product infoPanel mounted receptacle 3333 PDF, 161 KB
CAD data STPPanel mounted receptacle 3333 ZIP, 761 KB
CAD data 3D DWGPanel mounted receptacle 3333 ZIP, 2 MB
Mounting instructionsPanel mounted receptacle 3333 PDF, 128 KB
Dimensional drawing portraitPanel mounted receptacle 3333 PNG, 104 KB
Dimensional drawing landscape formatPanel mounted receptacle 3333 PNG, 105 KB

Directives

Panel mounted receptacle 3333

REACh
RoHS
