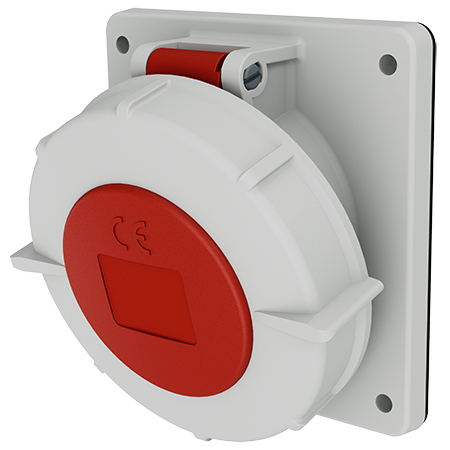

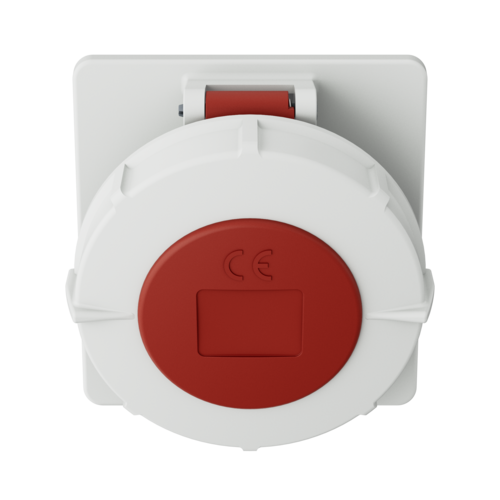

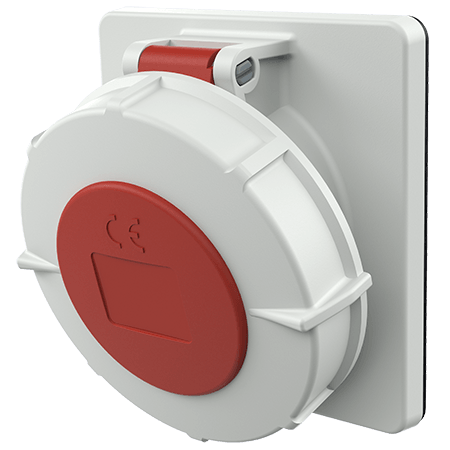

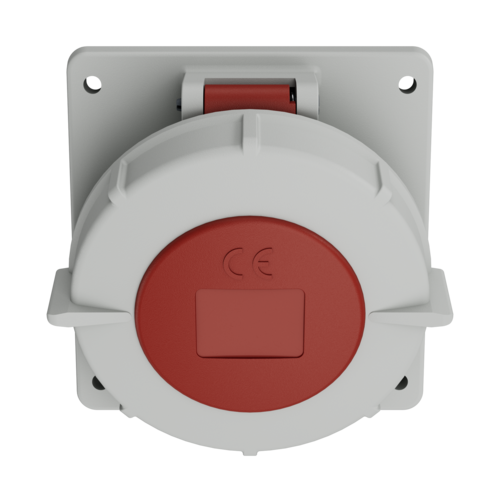

MENNEKES Panel mounted receptacle 3334
MENNEKES Panel mounted receptacle 3334 images3d

Panel mounted receptacle 3334

Poles
Voltage
Clock position
  • screw terminals
  • uniform fixing hole spacing
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.3334
  • EAN4015394188070
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted receptacle 3334

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 110x106 mm
Fixing hole 90x90 mm
Inclination 15 °
Weight 320 g
Certifications VDE
EAC

Directives

Panel mounted receptacle 3334

Appropriate accessories

Panel mounted receptacle 3334

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
