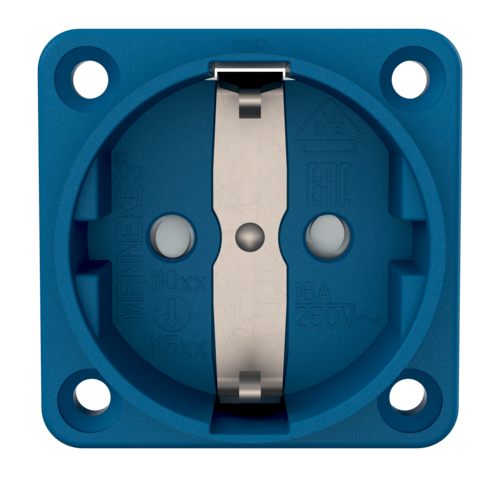

MENNEKES Panel mounted receptacle SCHUKO® 11581

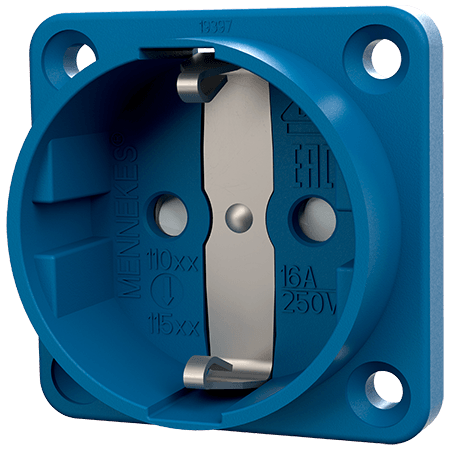

MENNEKES Panel mounted receptacle SCHUKO® 11581 images3d

Panel mounted receptacle SCHUKO® 11581

Ampere 16 A
Poles
Voltage
  • without hinged lid
  • 3 screw terminals as connecting terminals for 1.5 – 2.5 mm²
  • other colours on request
  • Part no.11581
  • EAN4015394195436
  • Std. Pack. 100

Technical specifications

Panel mounted receptacle SCHUKO® 11581

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP20
Shutter Yes
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 40 g
Certifications VDE
EAC
Kema

Datasheets & Downloads

Panel mounted receptacle SCHUKO® 11581

Product infoPanel mounted receptacle SCHUKO® 11581 PDF, 190 KB
CAD data STPPanel mounted receptacle SCHUKO® 11581 ZIP, 695 KB
CAD data 3D DWGPanel mounted receptacle SCHUKO® 11581 ZIP, 1 MB
Dimensional drawing portraitPanel mounted receptacle SCHUKO® 11581 PNG, 34 KB
Dimensional drawing landscape formatPanel mounted receptacle SCHUKO® 11581 PNG, 80 KB

Directives

Panel mounted receptacle SCHUKO® 11581

REACh
RoHS

Appropriate accessories

Panel mounted receptacle SCHUKO® 11581

MENNEKES Base for wall mounted receptacle 10715

Base for wall mounted receptacle

Part no. 10715

with cable entry and screws, suitable for all panel mounted receptacles SCHUKO®/ grounding type receptacles, flange: 50 x 50 mm
