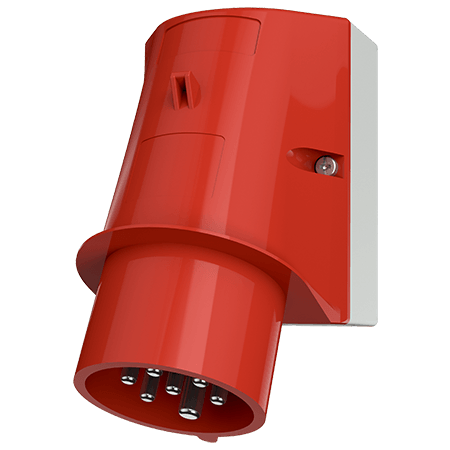

MENNEKES Wall mounted inlet 2166
MENNEKES Wall mounted inlet 2166 images3d

Wall mounted inlet 2166

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • enclosure base with stamped recess for quick cutting out
  • Part no.2166
  • EAN4015394013532
  • Std. Pack. 10

Technical specifications

Wall mounted inlet 2166

Ampere 16 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Weight 266 g
Certifications CQC

Datasheets & Downloads

Wall mounted inlet 2166

Product infoWall mounted inlet 2166 PDF, 119 KB
Manufacturer‘s declarationWall mounted inlet 2166 PDF, 54 KB
CAD data STPWall mounted inlet 2166 ZIP, 430 KB
CAD data 3D DWGWall mounted inlet 2166 ZIP, 1 MB
Dimensional drawing portraitWall mounted inlet 2166 PNG, 93 KB
Dimensional drawing landscape formatWall mounted inlet 2166 PNG, 94 KB

Directives

Wall mounted inlet 2166

REACh
RoHS
