MENNEKES Wall mounted inlet 2167
MENNEKES Wall mounted inlet 2167 images3d

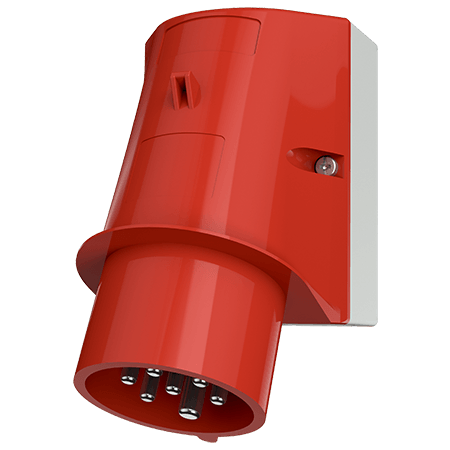

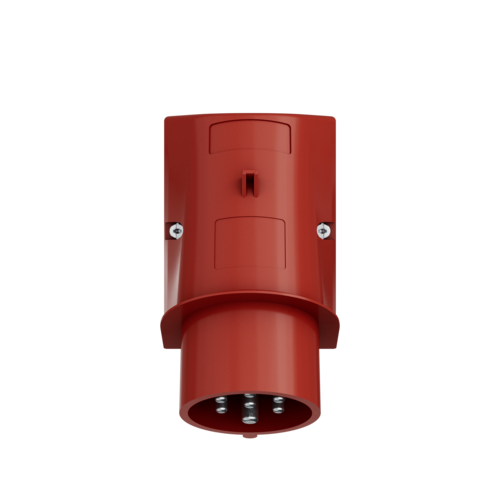

Wall mounted inlet 2167

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable entry also possible on the back side
  • enclosure base with stamped recess for quick cutting out
  • Part no.2167
  • EAN4015394013549
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted inlet 2167

Ampere 32 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Weight 430 g
Certifications EAC
CQC

Directives

Wall mounted inlet 2167

Appropriate accessories

Wall mounted inlet 2167

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
