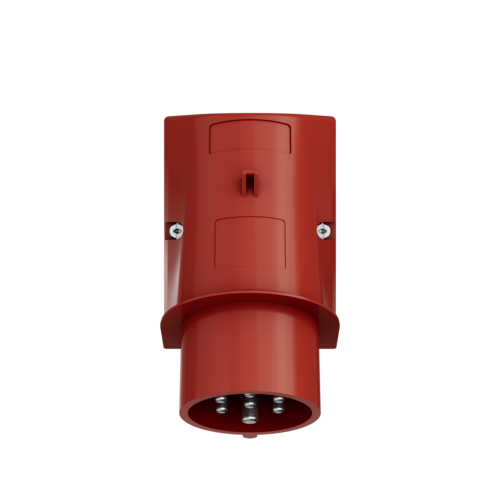

Wall mounted inlet 2166

Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • enclosure base with stamped recess for quick cutting out
  • Part no.2166
  • EAN4015394013532
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted inlet 2166

Ampere 16 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 44
Weight 266 g
Declaration of Conformity CN,CQC

Appropriate accessories

Wall mounted inlet 2166

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage
