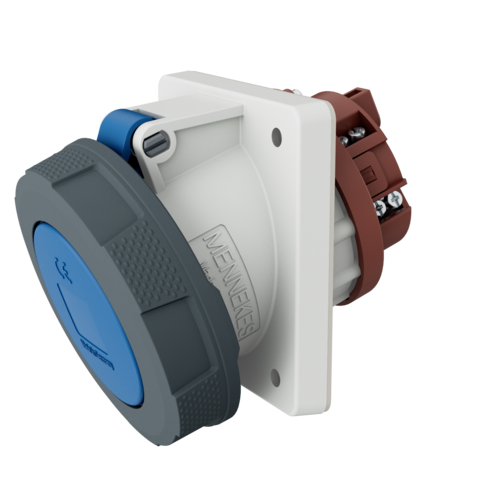

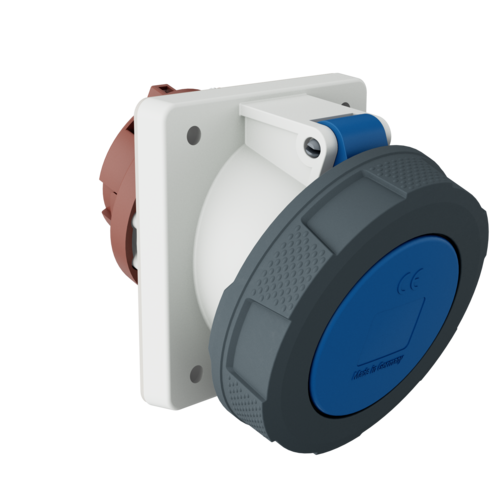

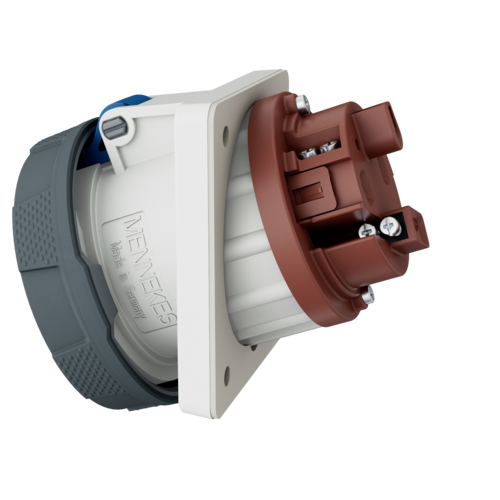

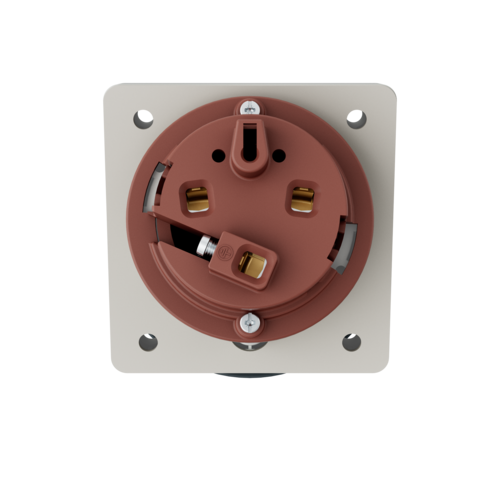

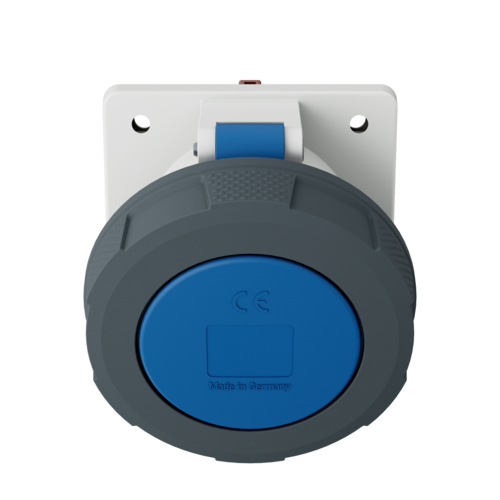

MENNEKES Panel mounted receptacle 2180A

Panel mounted receptacle 2180A

Ampere 63 A 125 A
  • 20° inclination
  • receptacles with pilot contact: part no. + index P
  • Part no.2180A
  • EAN4015394013662
  • Std. Pack. 5
Standard screw terminals

Screw terminals

Standard screw terminals

Read more

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Panel mounted receptacle 2180A

Ampere 63 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 110x106 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 520 g
Certifications CQC

Datasheets & Downloads

Panel mounted receptacle 2180A

Product infoPanel mounted receptacle 2180A PDF, 154 KB
Manufacturer‘s declarationPanel mounted receptacle 2180A PDF, 37 KB
CAD data STPPanel mounted receptacle 2180A ZIP, 1 MB
CAD data 3D DWGPanel mounted receptacle 2180A ZIP, 3 MB
Dimensional drawing portraitPanel mounted receptacle 2180A PNG, 108 KB
Dimensional drawing landscape formatPanel mounted receptacle 2180A PNG, 109 KB

Videos

Panel mounted receptacle 2180A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted receptacle 2180A

REACh
RoHS
