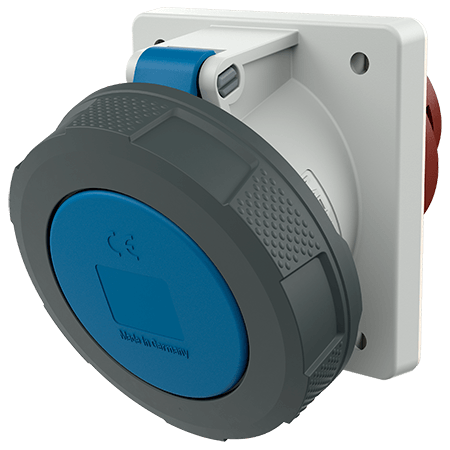

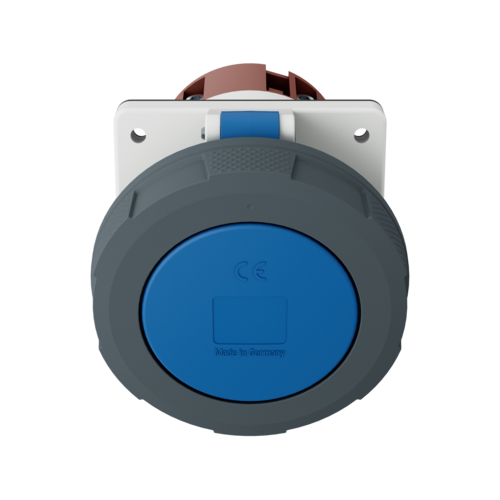

Panel mounted receptacle 3575

Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT®
  • 15° inclination
  • receptacles with pilot contact: part no. + index P
  • Part no.3575
  • EAN4015394019824
  • Std. Pack. 5 Qty.

Technical specifications

Panel mounted receptacle 3575

Ampere 125 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 67
Flange 114x110 mm
Fixing hole 90x90 mm
Inclination 15 °
Weight 940 g
Declaration of Conformity VDE
EAC
CQC
