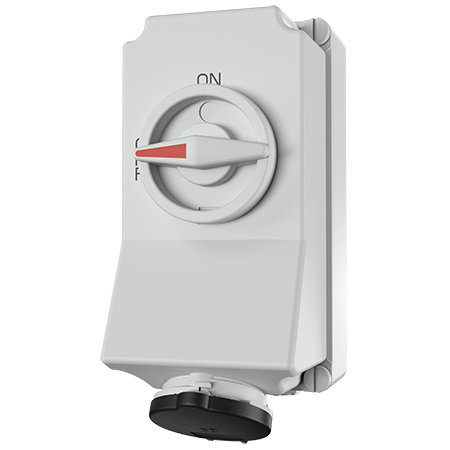

MENNEKES Wall mounted receptacle 7320
MENNEKES Wall mounted receptacle 7320 images3d

Wall mounted receptacle 7320

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • highly heat resistant contact carrier
  • nickel plated contacts
  • 6 pole switch with 2 auxiliary contacts (1 NO and 1 NC)
  • receptacles can be padlocked
  • Part no.7320
  • EAN4015394112334
  • Std. Pack. 1
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Wall mounted receptacle 7320

Ampere 16 A
Poles 7 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 1432 g
Certifications EAC
CQC

Datasheets & Downloads

Wall mounted receptacle 7320

Product infoWall mounted receptacle 7320 PDF, 167 KB
Dimensional drawing portraitWall mounted receptacle 7320 PNG, 103 KB
Dimensional drawing landscape formatWall mounted receptacle 7320 PNG, 103 KB

Directives

Wall mounted receptacle 7320

REACh
RoHS
