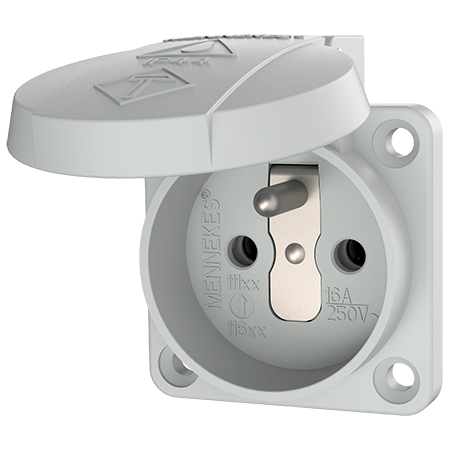

MENNEKES Grounding-type panel mounted receptacle 11130

Grounding-type panel mounted receptacle 11130

Ampere 16 A
  • French-belgian standard
  • with hinged lid
  • 3 screw terminals as connecting terminals for 1.5 - 2.5 mm²
  • other colours on request
  • Part no.11130
  • EAN4015394184898
  • Std. Pack. 100 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

Technical specifications

Grounding-type panel mounted receptacle 11130

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP44
Shutter No
Enclosure material Plastic
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 47 g

Directives

Grounding-type panel mounted receptacle 11130
