MENNEKES

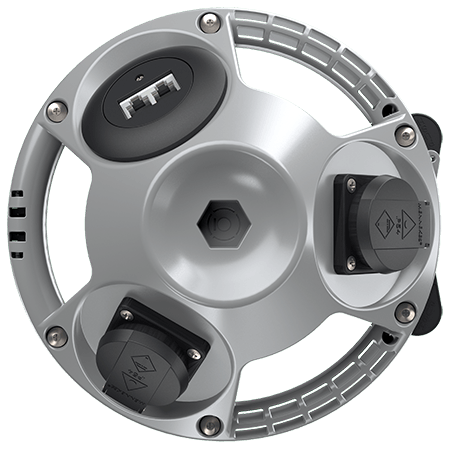

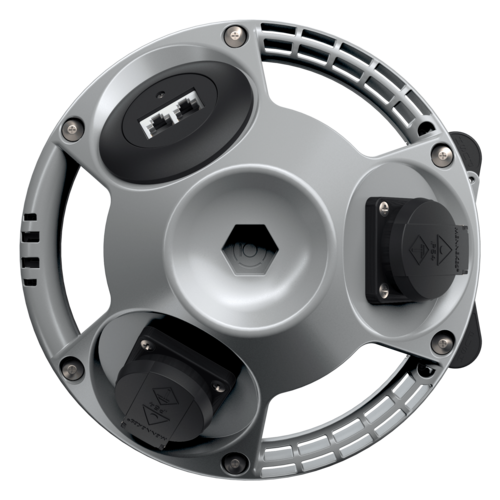

MENNEKES 3KRAFT 94354SI
MENNEKES 3KRAFT 94354SI images3d

3KRAFT 94354SI

SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • back box in black
  • hinged cover available in red (RO), yellow (GE) or silver (SI)
  • enclosure and insert made of AMAPLAST
  • Part no.94354SI
  • EAN4015394208044
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

3KRAFT 94354SI

SCHUKO® 16 A, 230 V 2
Data port sockets 1 RJ45 double data port cat.6, 8/8
Connection/feeder cable
  • for 1 cable up to 3 x 6 mm²
Protection type IP20
Enclosure material Plastic
Weight 1100 g
Certifications EAC
Storage receptacle combination B

Directives

3KRAFT 94354SI

Appropriate accessories

3KRAFT 94354SI

MENNEKES Pneumatic connection 41442

Pneumatic connection

Part no. 41442

for 3KRAFT® and AirKRAFT®, for tube Ø 9 mm, part no. 208320for tube Ø 13 mm, part no. 208621, pneumatic connection duplex part no. 41442

MENNEKES Set of chains 106123

Set of chains

Part no. 106123

for fixing 3KRAFT to the ceiling

MENNEKES Pneumatic connection 208620

Pneumatic connection

Part no. 208620

for 3KRAFT® and AirKRAFT®, for tube Ø 9 mm, part no. 208320for tube Ø 13 mm, part no. 208621, pneumatic connection duplex part no. 41442

MENNEKES Pneumatic connection 208621

Pneumatic connection

Part no. 208621

for 3KRAFT® and AirKRAFT®, for tube Ø 9 mm, part no. 208320for tube Ø 13 mm, part no. 208621, pneumatic connection duplex part no. 41442

Frequently asked questions about the product

Are there schematic diagrams for 3KRAFT® and AirKRAFT® products?

Product information sheets with dimensional drawings of 3KRAFT® and AirKRAFT® products can be found on the corresponding product detail pages. There are no schematic diagrams for these product groups.

To the questions and answers
