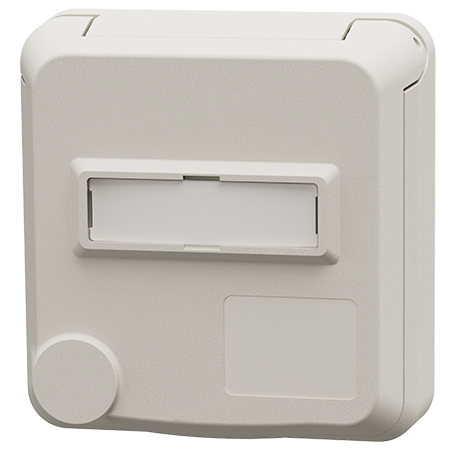

MENNEKES Cepex panel mounted receptacle with labeling field, pure white 4473

Cepex panel mounted receptacle with labeling field, pure white 4473

Available from 01/07/2026
Ampere 16 A
  • screw terminals
  • with labelling field
  • also suitable for installation in cable ducts and columns
  • Part no.4473
  • EAN4015394315582
  • Std. Pack. 8 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex panel mounted receptacle with labeling field, pure white 4473

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP54
Shutter No
Weight 206 g

Datasheets & Downloads

Cepex panel mounted receptacle with labeling field, pure white 4473

Product infoCepex panel mounted receptacle with labeling field, pure white 4473 PDF, 461 KB

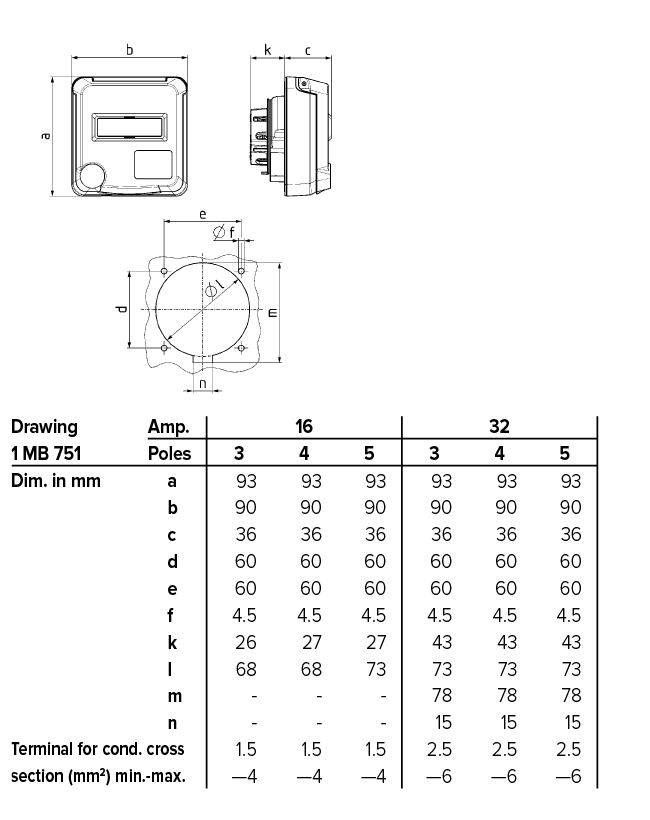

Dimensional drawing portraitCepex panel mounted receptacle with labeling field, pure white 4473 PNG, 161 KB
Dimensional drawing landscape formatCepex panel mounted receptacle with labeling field, pure white 4473 PNG, 233 KB

Directives

Cepex panel mounted receptacle with labeling field, pure white 4473

REACh
RoHS
