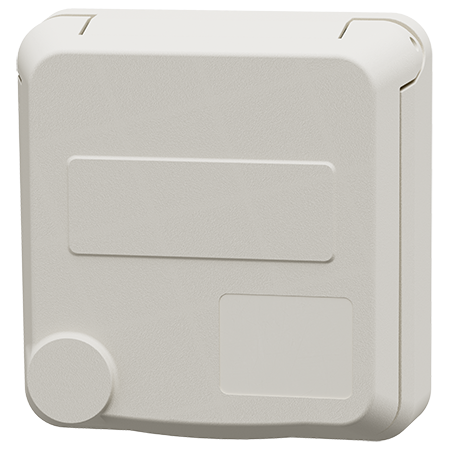

MENNEKES Cepex grounding-type panel mounted receptacle, pure white 4509

Cepex grounding-type panel mounted receptacle, pure white 4509

Available from 01/07/2026
Ampere 16 A
  • french-belgian standard
  • screw terminals
  • also suitable for installation in cable ducts and columns
  • Part no.4509
  • EAN4015394315476
  • Std. Pack. 8 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex grounding-type panel mounted receptacle, pure white 4509

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Hertz 50-60 Hz
Protection type IP54
Shutter Yes
Weight 171 g

Datasheets & Downloads

Cepex grounding-type panel mounted receptacle, pure white 4509

Product infoCepex grounding-type panel mounted receptacle, pure white 4509 PDF, 347 KB
Dimensional drawing portraitCepex grounding-type panel mounted receptacle, pure white 4509 PNG, 41 KB
Dimensional drawing landscape formatCepex grounding-type panel mounted receptacle, pure white 4509 PNG, 123 KB

Directives

Cepex grounding-type panel mounted receptacle, pure white 4509

REACh
RoHS

Appropriate products

Cepex grounding-type panel mounted receptacle, pure white 4509 with IP54

MENNEKES Flush-mounted box 41401

Flush-mounted box

Part no. 41401

more

Appropriate accessories

Cepex grounding-type panel mounted receptacle, pure white 4509

MENNEKES Cepex masking frames, Pure white 41423

Cepex masking frames, Pure white

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

more
MENNEKES Cepex masking frames, pearl white 41406

Cepex masking frames, pearl white

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

more
MENNEKES Cepex masking frames, light grey 41407

Cepex masking frames, light grey

Part no. 41407

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

more
MENNEKES Cepex masking frame, Pure white 41424

Cepex masking frame, Pure white

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

more
MENNEKES Cepex masking frame 41408

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

more
