MENNEKES

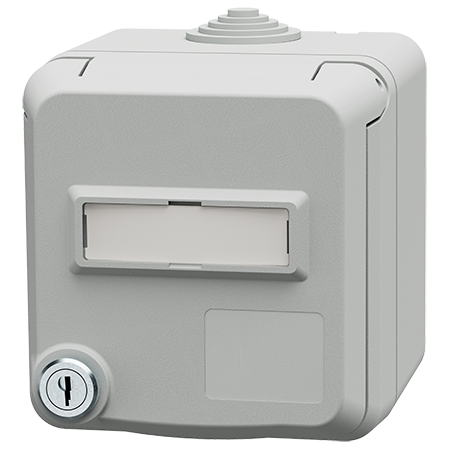

MENNEKES Cepex grounding-type panel wall receptacle with lock and labeling field, light grey 4520

Cepex grounding-type panel wall receptacle with lock and labeling field, light grey 4520

Available from 01/07/2026
Ampere 16 A
  • french-belgian standard
  • screw terminals
  • with labelling field
  • with safety lock, two keys
  • cannot be dismantled when locked
  • with identical locks: Part no + index G
  • one cable entry at top with M 25 stub, one M 25 blind entry (can be cut out) at bottom, one M 20 entry (can be cut out) at the back side, for cables from 7 bis 13 mm Ø
  • Part no.4520
  • EAN4015394315469
  • Std. Pack. 8 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex grounding-type panel wall receptacle with lock and labeling field, light grey 4520

Ampere 16 A
Poles 2 p+PE
Voltage 230 V
Hertz 50-60 Hz
Protection type IP54
Shutter Yes
Enclosure material Plastic
Weight 300 g

Directives

Cepex grounding-type panel wall receptacle with lock and labeling field, light grey 4520

Appropriate accessories

Cepex grounding-type panel wall receptacle with lock and labeling field, light grey 4520

MENNEKES Spacer frame 4239

Spacer frame

Part no. 4239

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

MENNEKES Spacer frame 4192

Spacer frame

Part no. 4192

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

MENNEKES Cable gland 990610

Cable gland

Part no. 990610

M 25 - clamping/sealing range 9-17 mm, IP54, deep black RAL 9005, individual packed
