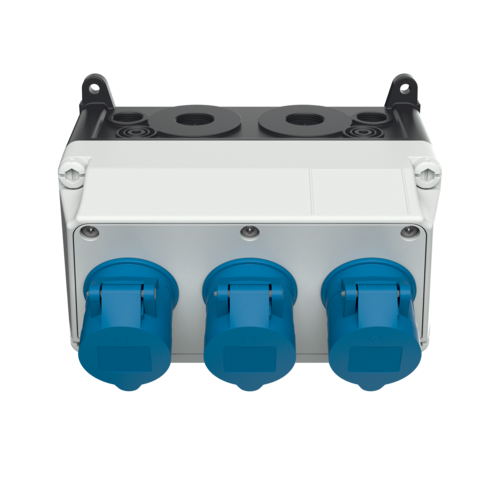

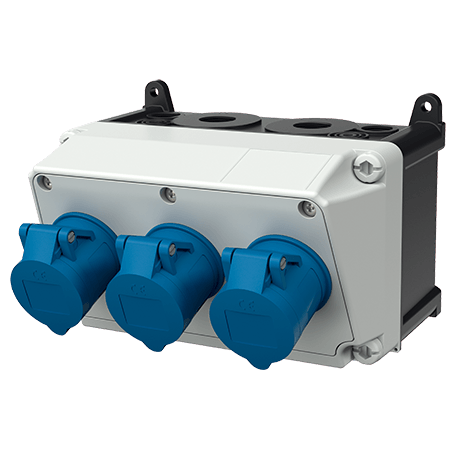

MENNEKES AMAXX receptacle combination 910015
MENNEKES AMAXX receptacle combination 910015 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX receptacle combination 910015

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 16 A, 3 p, 230 V
  • pre-wired for installation
  • Part no.910015
  • EAN4015394269281
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX receptacle combination 910015

CEE 16 A, 3 p, 230 V 3
Pre-fuse max. 16 A
InA 16 A
RDF 1
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP44
Enclosure material Plastic
Weight 1416 g
Height 130 mm
Width 225 mm
Certifications EAC
Storage receptacle combination D

Videos

AMAXX receptacle combination 910015

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX receptacle combination 910015

Frequently asked questions about the product

Can I order partially wired receptacle combinations from MENNNEKES?

We are offering fully wired receptacle combinations in compliance with IEC 61439. The party completing a partially wired receptacle combination becomes the manufacturer who is thus under obligation to test the receptacle combination in accordance with IEC 61439.

Can I make changes to the receptacle combination or extend it?

Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
