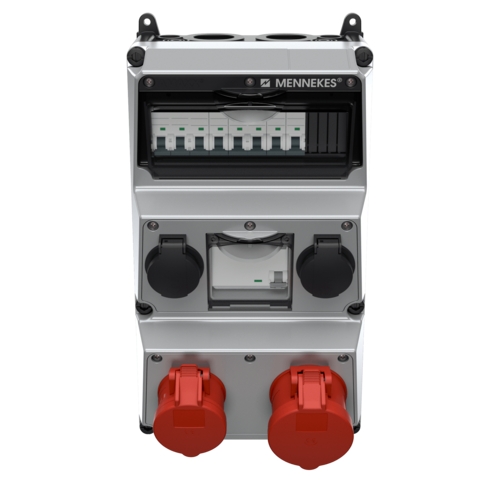

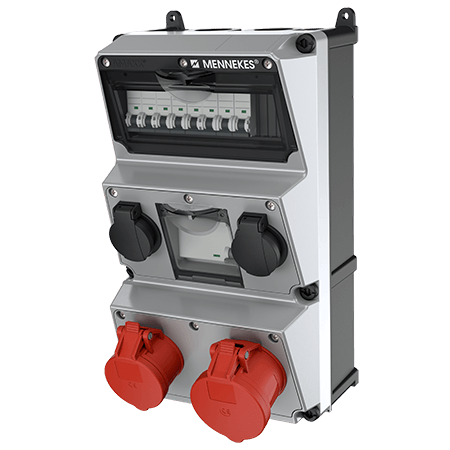

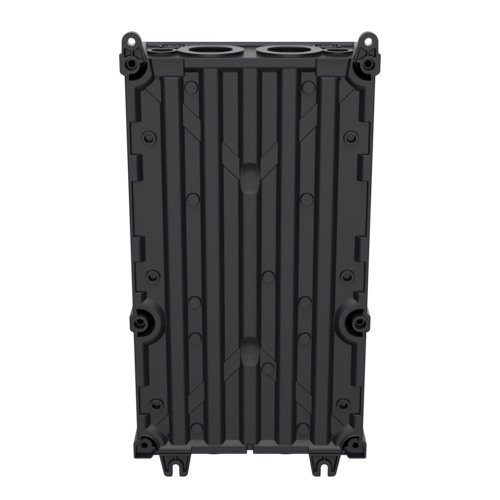

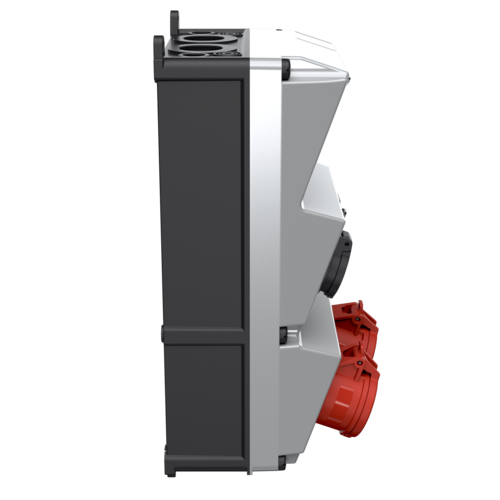

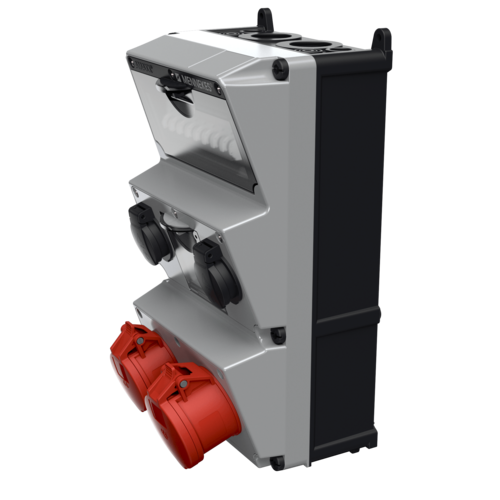

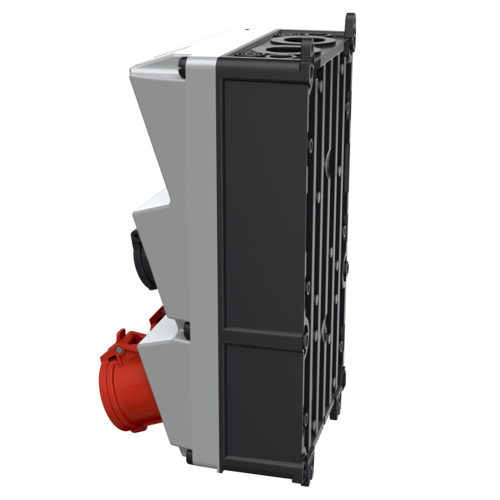

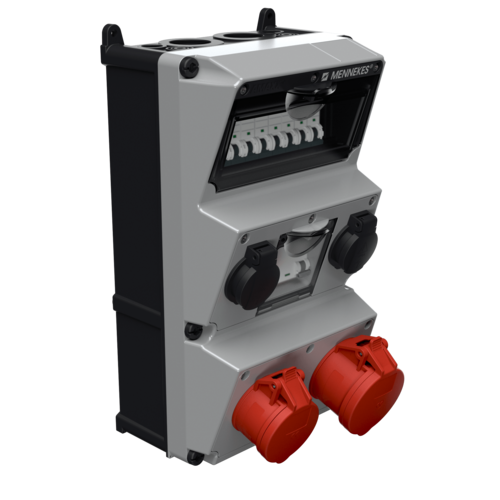

MENNEKES AMAXX receptacle combination 930013SI

AMAXX receptacle combination 930013SI

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows...Read more
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.930013SI
  • EAN4015394222774
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX receptacle combination 930013SI

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 32 A, 3 p, C
  • 1 MCB 16 A, 3 p, C
  • 2 MCB´s 16 A, 1 p, C
Pre-fuse max. 40 A
InA 40 A
RDF 0.75
Connection/feeder cable
  • for 1 cable up to 5 x 25 mm²
Protection type IP44
Enclosure material Plastic
Weight 5110 g
Height 390 mm
Width 225 mm
Storage receptacle combination B

Datasheets & Downloads

AMAXX receptacle combination 930013SI

Product infoAMAXX receptacle combination 930013SI PDF, 167 KB
CAD data STPAMAXX receptacle combination 930013SI ZIP, 7 MB
CAD data 3D DWGAMAXX receptacle combination 930013SI ZIP, 23 MB
Mounting instructionsAMAXX receptacle combination 930013SI PDF, 2 MB
Dimensional drawing portraitAMAXX receptacle combination 930013SI PNG, 103 KB
Dimensional drawing landscape formatAMAXX receptacle combination 930013SI PNG, 104 KB

Videos

AMAXX receptacle combination 930013SI

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX receptacle combination 930013SI

REACh
RoHS

Appropriate accessories

AMAXX receptacle combination 930013SI

MENNEKES AMAXX® screw set consisting 990606

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

more
MENNEKES CombiTOWER 15681

CombiTOWER

Part no. 15681

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, painted signal yellow (RAL 1003)

more
MENNEKES Cable gland 990607

Cable gland

Part no. 990607

M 20 - clamping/sealing range 6-13 mm, IP54, deep black RAL 9005, individual packed

more

Frequently asked questions about the product

Can I order partially wired receptacle combinations from MENNNEKES?

We are offering fully wired receptacle combinations in compliance with IEC 61439. The party completing a partially wired receptacle combination becomes the manufacturer who is thus under obligation to test the receptacle combination in accordance with IEC 61439.

Can I make changes to the receptacle combination or extend it?

Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
