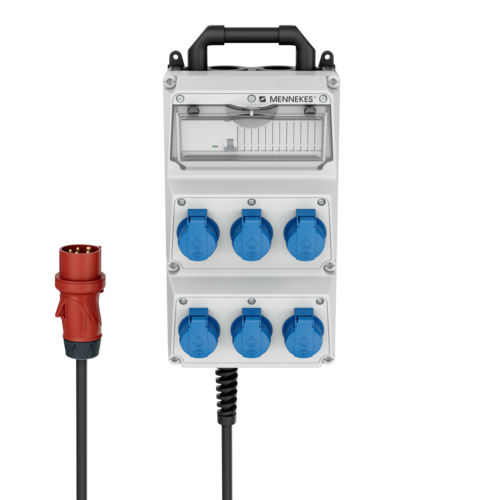

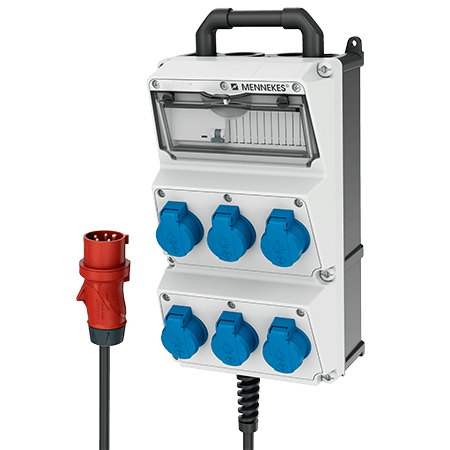

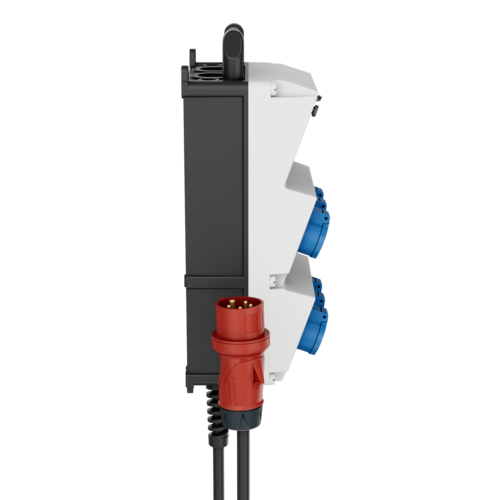

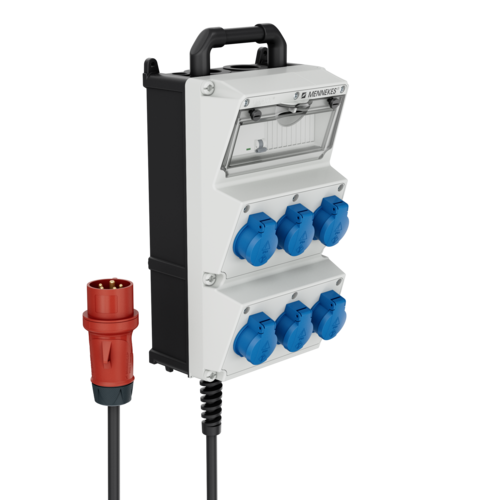

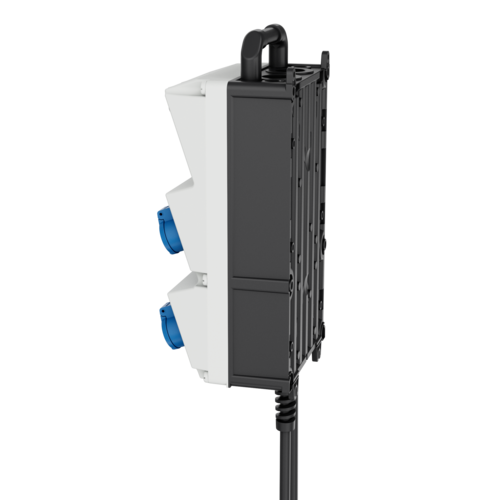

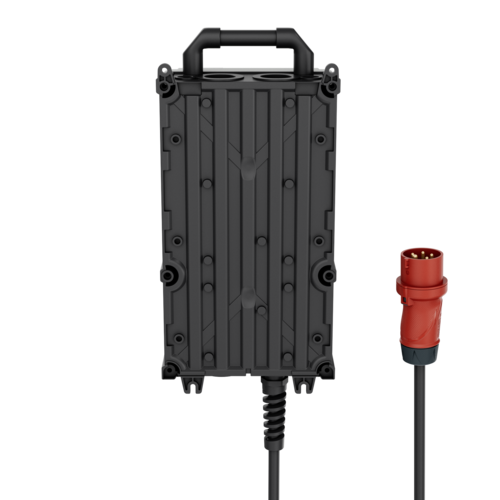

MENNEKES AMAXX receptacle combination 930024

Please accept marketing-cookies to watch this video.

AMAXX receptacle combination 930024

SCHUKO® 16 A, 230 V

pre-wired for installation
hinged to the side

enclosure and insert made of AMAPLAST
fusing behind a transparent cover

Part no.930024
EAN4015394222255
Std. Pack. 1

Technical specifications

AMAXX receptacle combination 930024

SCHUKO® 16 A, 230 V	6
Fusing	1 RCD 40 A, 4 p, 0.03 A
Pre-fuse max.	16 A
InA	16 A
RDF	1
Connection/feeder cable	2 m H07RN-F5G2.5 with CEE-plug 16 A, 5 p, 400 V
Protection type	IP44
Enclosure material	Plastic
Weight	5160 g
Height	390 mm
Width	225 mm
Storage receptacle combination	A

Datasheets & Downloads

AMAXX receptacle combination 930024

Product infoAMAXX receptacle combination 930024 PDF, 156 KB

Manufacturer‘s declarationAMAXX receptacle combination 930024 PDF, 37 KB

Mounting instructionsAMAXX receptacle combination 930024 PDF, 2 MB

Dimensional drawing portraitAMAXX receptacle combination 930024 PNG, 103 KB

Dimensional drawing landscape formatAMAXX receptacle combination 930024 PNG, 104 KB

Videos

AMAXX receptacle combination 930024

Please accept marketing-cookies to watch this video.

Directives

AMAXX receptacle combination 930024

REACh

RoHS

Appropriate accessories

AMAXX receptacle combination 930024

CombiTOWER

Part no. 15678

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, bright finish

CombiTOWER

Part no. 15679

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, painted signal yellow (RAL 1003)

CombiTOWER

Part no. 15681

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, painted signal yellow (RAL 1003)

CombiTOWER

Part no. 15680

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, bright finish

Portable frame

Part no. 15696

yellow RAL 1003, suitable for AMAXX® receptacle combinations with the following sizes: 260 x 225 mm, 390 x 225 mm and 520 x 225 mm

Mounting unit

Part no. 18444

hangable mounting unit, made from light metal, with holes for front and rearinstallation of receptacles and receptacle combinations, 2 enclosures 260 x 225 mm enclosures 390 x 225 mm, colour: white aluminium (RAL 9006)

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

Cable gland

Part no. 990607

M 20 - clamping/sealing range 6-13 mm, IP54, deep black RAL 9005, individual packed

Weather shield

Part no. 15690

made from stainless steel (material 1.4301), Suitable for 2 AMAXX® combinations each with 2 or 3 segments, with side blinds, for wall mounting or on column, dimensions (H x W x D): 496,5 x 480 x 250 mm

Weather shield

Part no. 15682

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 496.5 x 254 x 250 mm
