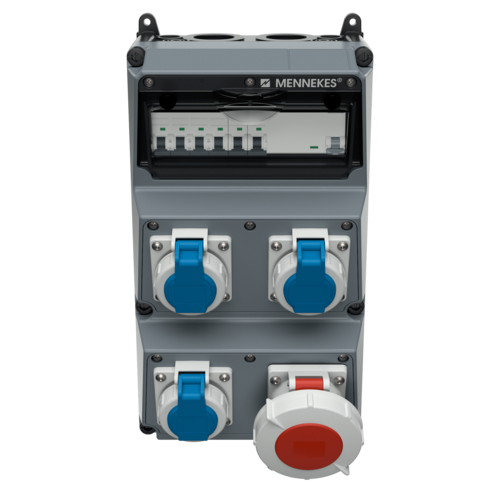

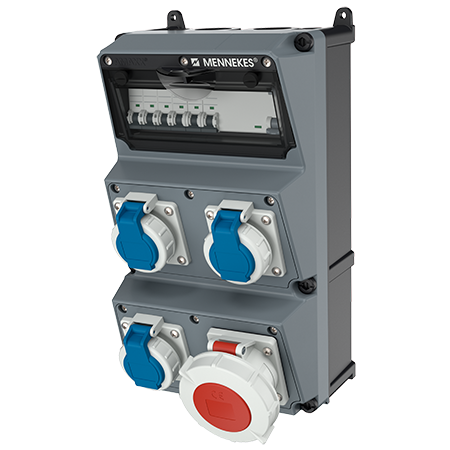

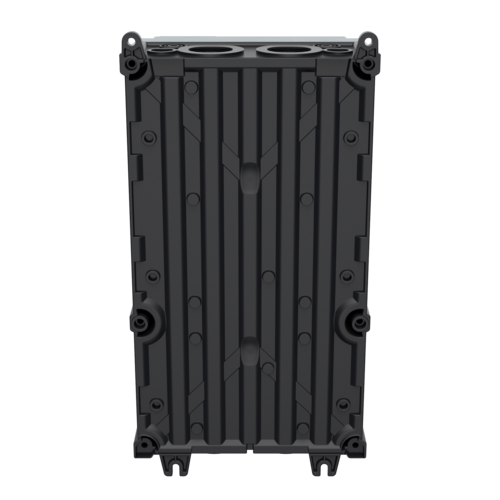

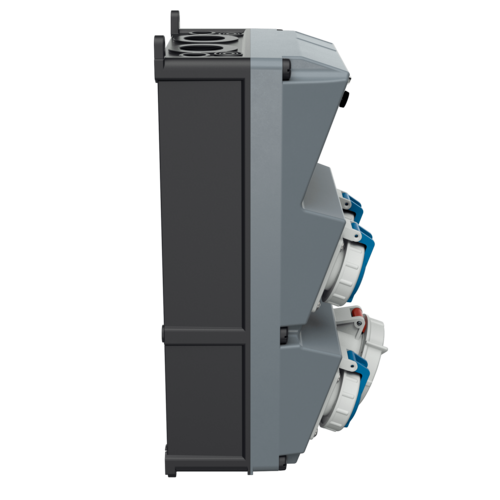

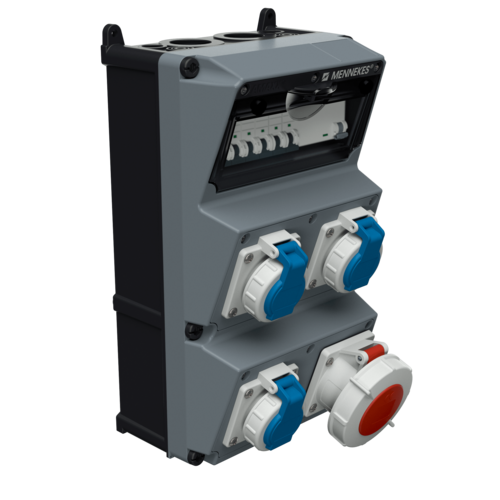

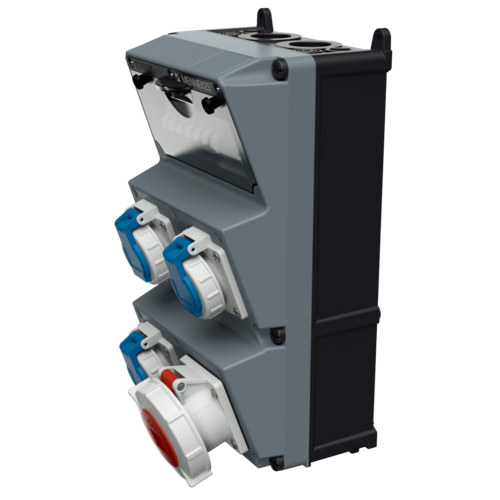

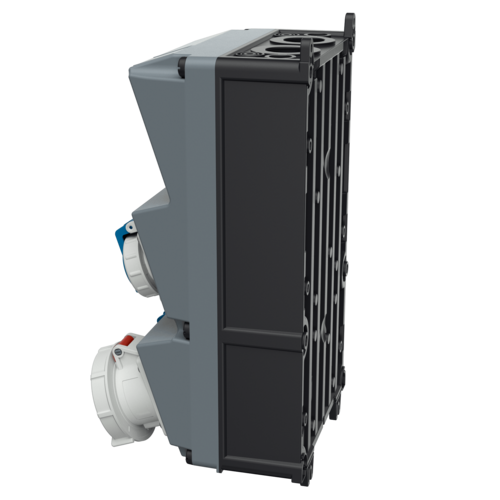

MENNEKES AMAXX receptacle combination 930028

AMAXX receptacle combination 930028

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows...Read more
CEE 32 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • highly resistant to chemicals
  • highly heat resistant contact carrier and nickel plated contacts
  • pre-wired for installation
  • enclosure front cover grey RAL 7000
  • hinged to the side
  • fusing behind a transparent cover
  • Part no.930028
  • EAN4015394224020
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Resistant to chemicals

Resistant to chemicals

Increased chemical resistance

Technical specifications

AMAXX receptacle combination 930028

CEE 32 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 3
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 32 A, 3 p, C
  • 3 MCB´s 16 A, 1 p, C
Pre-fuse max. 40 A
InA 36 A
RDF 0.75
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 5860 g
Height 390 mm
Width 225 mm
Certifications EAC
Storage receptacle combination B

Videos

AMAXX receptacle combination 930028

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX receptacle combination 930028

Appropriate accessories

AMAXX receptacle combination 930028

MENNEKES CombiTOWER 15681

CombiTOWER

Part no. 15681

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, painted signal yellow (RAL 1003)

MENNEKES CombiTOWER 15679

CombiTOWER

Part no. 15679

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, painted signal yellow (RAL 1003)

MENNEKES Portable frame 15696

Portable frame

Part no. 15696

yellow RAL 1003, suitable for AMAXX® receptacle combinations with the following sizes: 260 x 225 mm, 390 x 225 mm and 520 x 225 mm

Frequently asked questions about the product

Can I order partially wired receptacle combinations from MENNNEKES?

We are offering fully wired receptacle combinations in compliance with IEC 61439. The party completing a partially wired receptacle combination becomes the manufacturer who is thus under obligation to test the receptacle combination in accordance with IEC 61439.

Can I make changes to the receptacle combination or extend it?

Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
