MENNEKES AMAXX receptacle combination 950005
MENNEKES AMAXX receptacle combination 950005 images3d

Please accept marketing-cookies to watch this video.

Video varieties

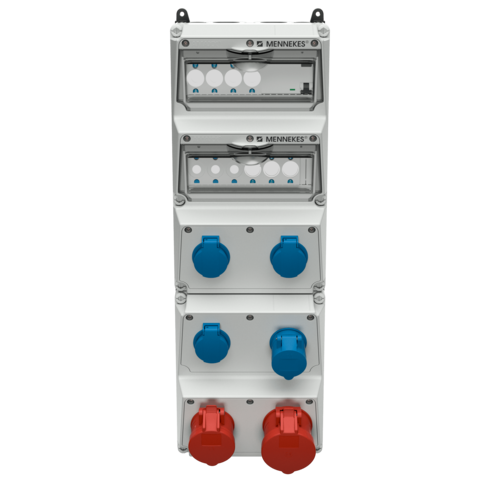

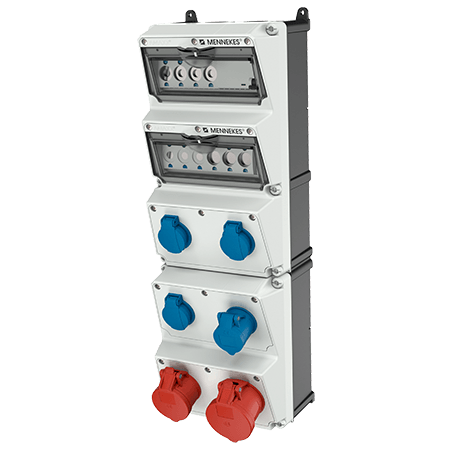

AMAXX receptacle combination 950005

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
CEE 16 A, 3 p, 230 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.950005
  • EAN4015394243243
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX receptacle combination 950005

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
CEE 16 A, 3 p, 230 V 1
SCHUKO® 16 A, 230 V 3
Fusing
  • 1 RCD 63 A, 4 p, 0.03 A
  • 1 Neozed D02, 3 p
  • 1 Neozed D01, 3 p
  • 4 Neozed D01, 1 p
Pre-fuse max. 63 A
InA 44 A
RDF 0.55
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP44
Enclosure material Plastic
Weight 7500 g
Height 650 mm
Width 225 mm
Certifications EAC
Storage receptacle combination B

Videos

AMAXX receptacle combination 950005

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX receptacle combination 950005

Appropriate accessories

AMAXX receptacle combination 950005

MENNEKES Weather shield 15683

Weather shield

Part no. 15683

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 758 x 254 x 280 mm

MENNEKES CombiTOWER 15738

CombiTOWER

Part no. 15738

stainless steel (material 1.4301), material 1.4571 on request, with removable cover and front plate, dimensions: (H x W x D) 1043 x 254.5 x 250 mm, suitable for AMAXX® receptacle combinations with 5 segments, bright finish

MENNEKES CombiTOWER 15739

CombiTOWER

Part no. 15739

stainless steel (material 1.4301), material 1.4571 on request, with removable cover and front plate, dimensions: (H x W x D) 1043 x 254.5 x 250 mm, painted signal yellow (RAL 1003)

MENNEKES CombiTOWER 15740

CombiTOWER

Part no. 15740

stainless steel (material 1.4301), material 1.4571 on request, with removable cover and front plate, dimensions: (H x W x D) 1043 x 254 x 415 mm, bright finish

MENNEKES AMAXX® screw set consisting 990606

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

MENNEKES CombiTOWER 15741

CombiTOWER

Part no. 15741

stainless steel (material 1.4301), material 1.4571 on request, with removable cover and front plate, dimensions: (H x W x D) 1043 x 254 x 415 mm, painted signal yellow (RAL 1003)

MENNEKES Cable gland 990607

Cable gland

Part no. 990607

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

Frequently asked questions about the product

Can I order partially wired receptacle combinations from MENNNEKES?

We are offering fully wired receptacle combinations in compliance with IEC 61439. The party completing a partially wired receptacle combination becomes the manufacturer who is thus under obligation to test the receptacle combination in accordance with IEC 61439.

Can I make changes to the receptacle combination or extend it?

Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
